CA-M600W
CA-M600W Brightness: 6000 Lumens Resolution: WXGA (1280 × 800) Throw Ratio: 1.2~2.1:1 Standard Throw Net Weight: 7.7 kg Ideal for medium-to-large meeting rooms and training rooms.
The CA-M600W is a 6000-lumen standard-throw laser projector from CAAVITS MEGA series. It adopts 3×0.64" MLA micro-lens array 3LCD display technology and laser light source, paired with a Fujifilm standard zoom lens. With a 1.2~2.1:1 throw ratio, 1.66x optical zoom and lens shift, it can flexibly project large images ranging from 30" to 300". As the high-brightness workhorse of the MEGA series for widescreen (WXGA 16:10) projection at regular distances, it balances high brightness, widescreen display and installation flexibility.
-
Brightness: 6000 Lumens
- Resolution: WXGA (1280 × 800)
- Throw Ratio: 1.2~2.1:1 Standard Throw
- Net Weight: 7.7 kg
| Brightness (Lumens) | 6000 lm |
|---|---|

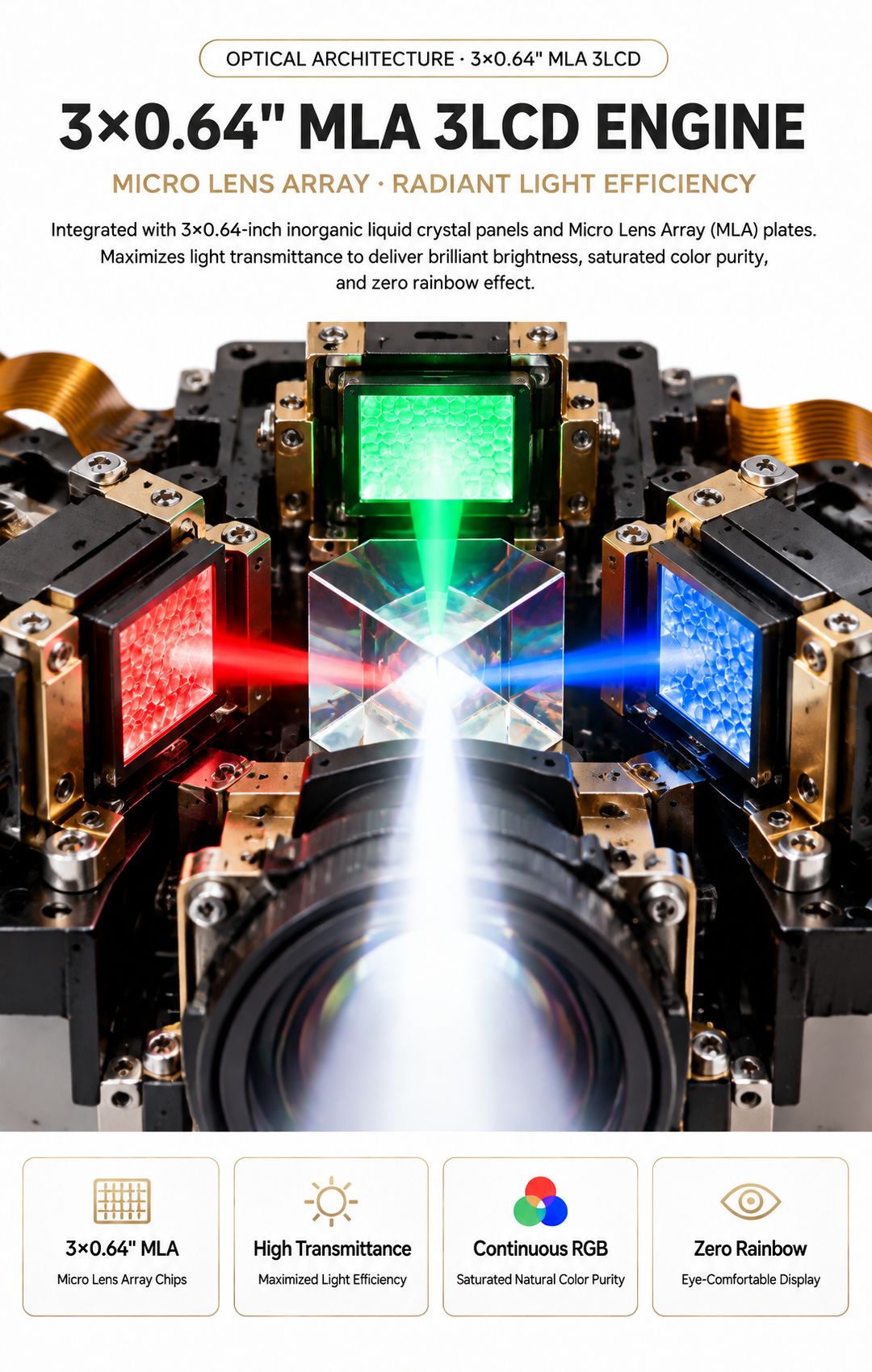

| Display Technology | 3x0.64” with MLA, 3LCD |
| Display Resolution | WXGA (1280×800) |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H ECO 30,000 H |
| Zoom/Focus | Manual |
| Zoom Ratio | 1.66x |
| Throw Ratio | 1.2-2.1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000:1 |

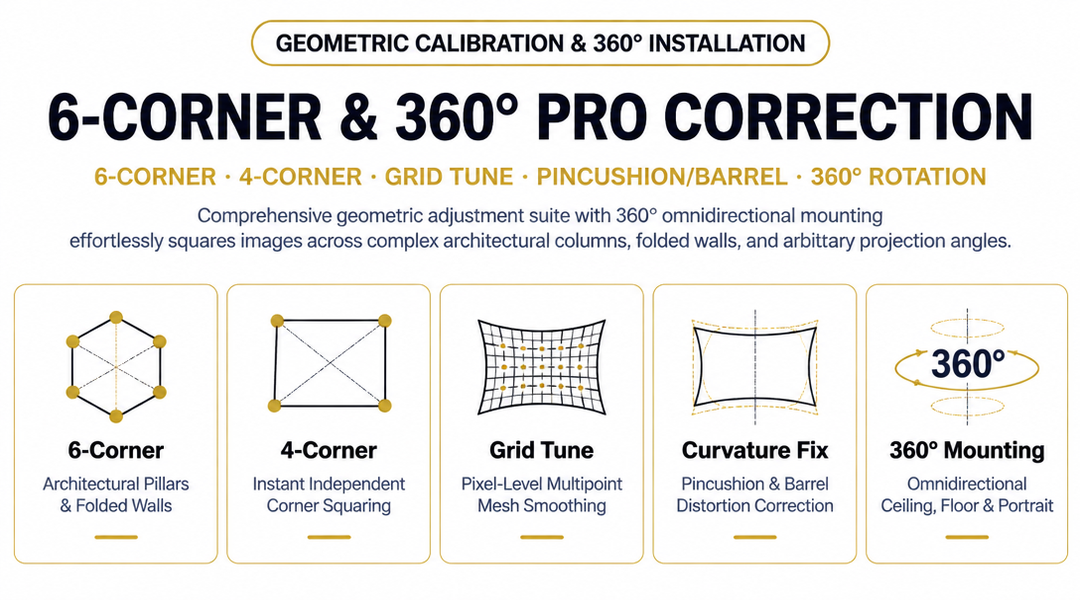

| Keystone Correction | V: ±30° H：±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |

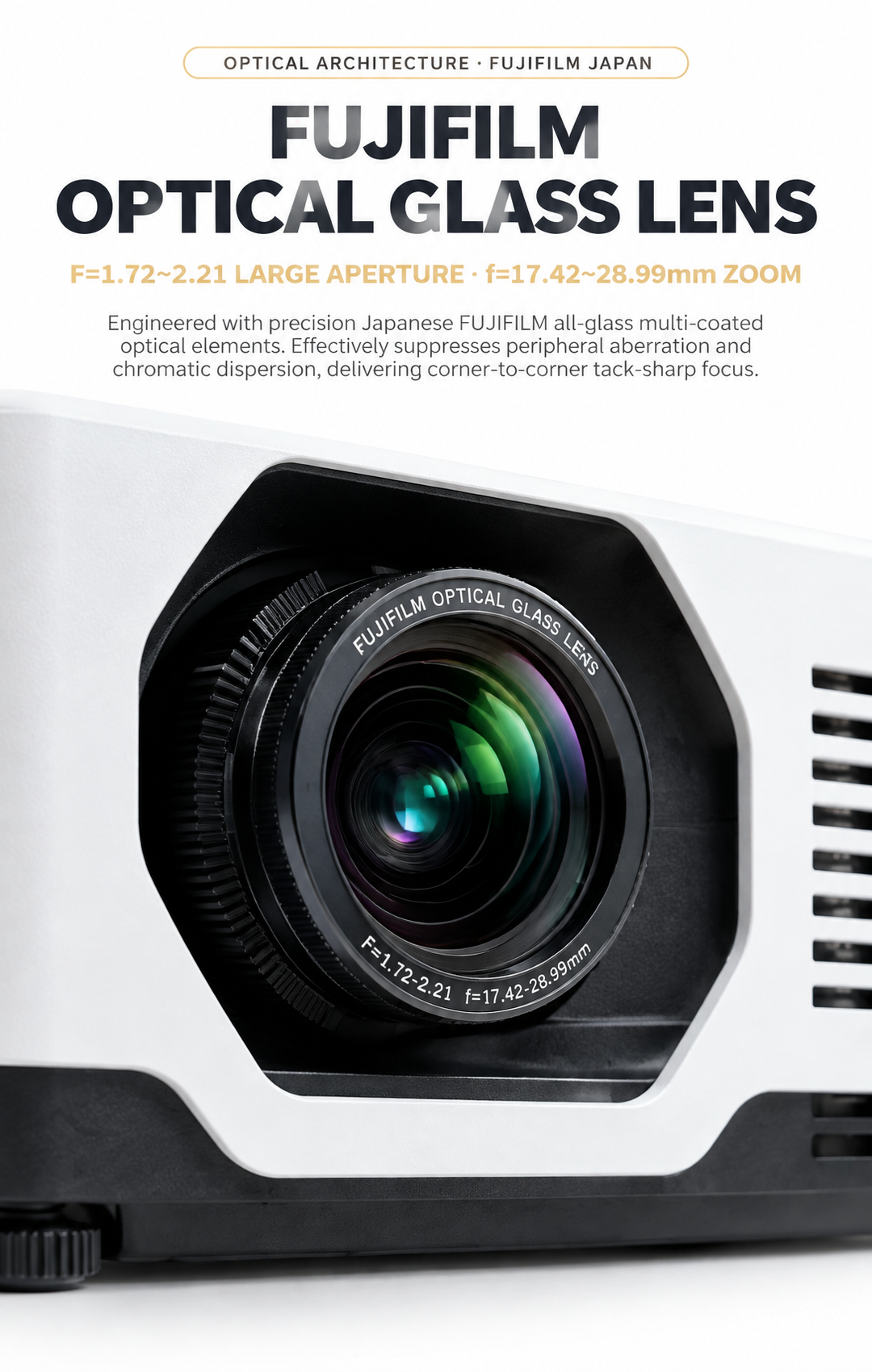

| F | F=1.7~2.21 |
| f | f=17.42~28.99mm |

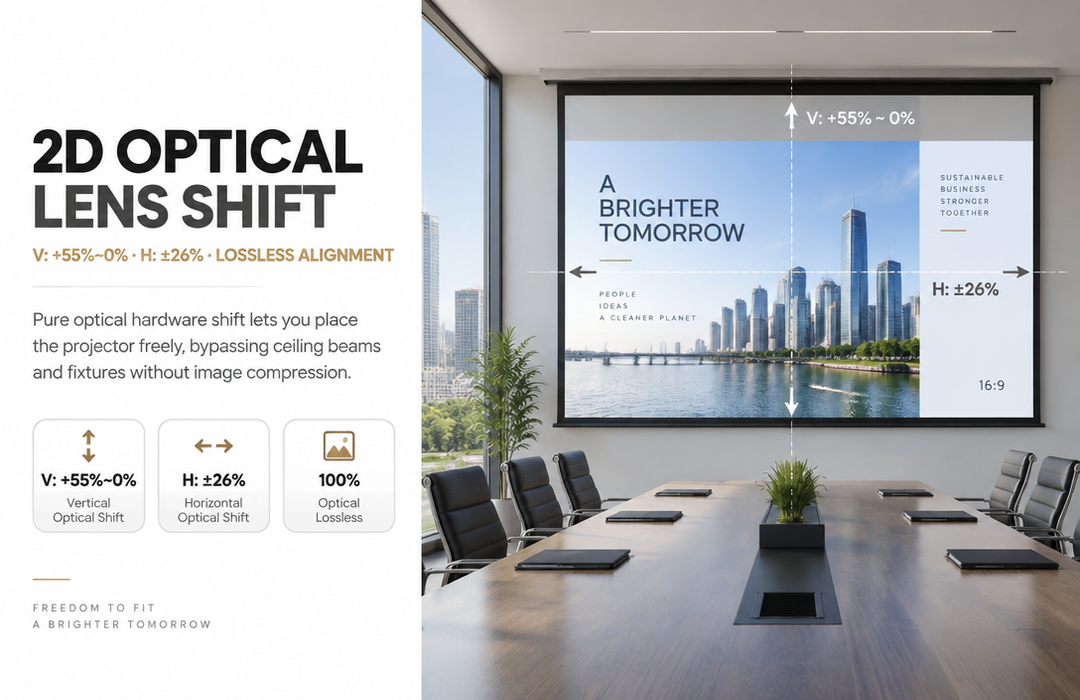

| Lens Shift | V:＋55%～0% H:±26% |
| Screen Size (inch) | 30"-300" |
| Speaker | 16W×1 |
| Aspect Ratio | Native:16:10 Compatible: 4:3, 16:9 |
| Noise (dB) | 37dB (Normal) 29dB (ECO1) 27dB (ECO2) |
| Physical (W×D×H mm) | 405×358×137 mm |
| Net (kg) | 7.7 kgs |
