CA-M600X
CA-M600X Brightness: 6000 Lumens Resolution: XGA (1024 × 768) Throw Ratio: 1.3~2.2:1 Standard Throw Net Weight: 7.7 kg

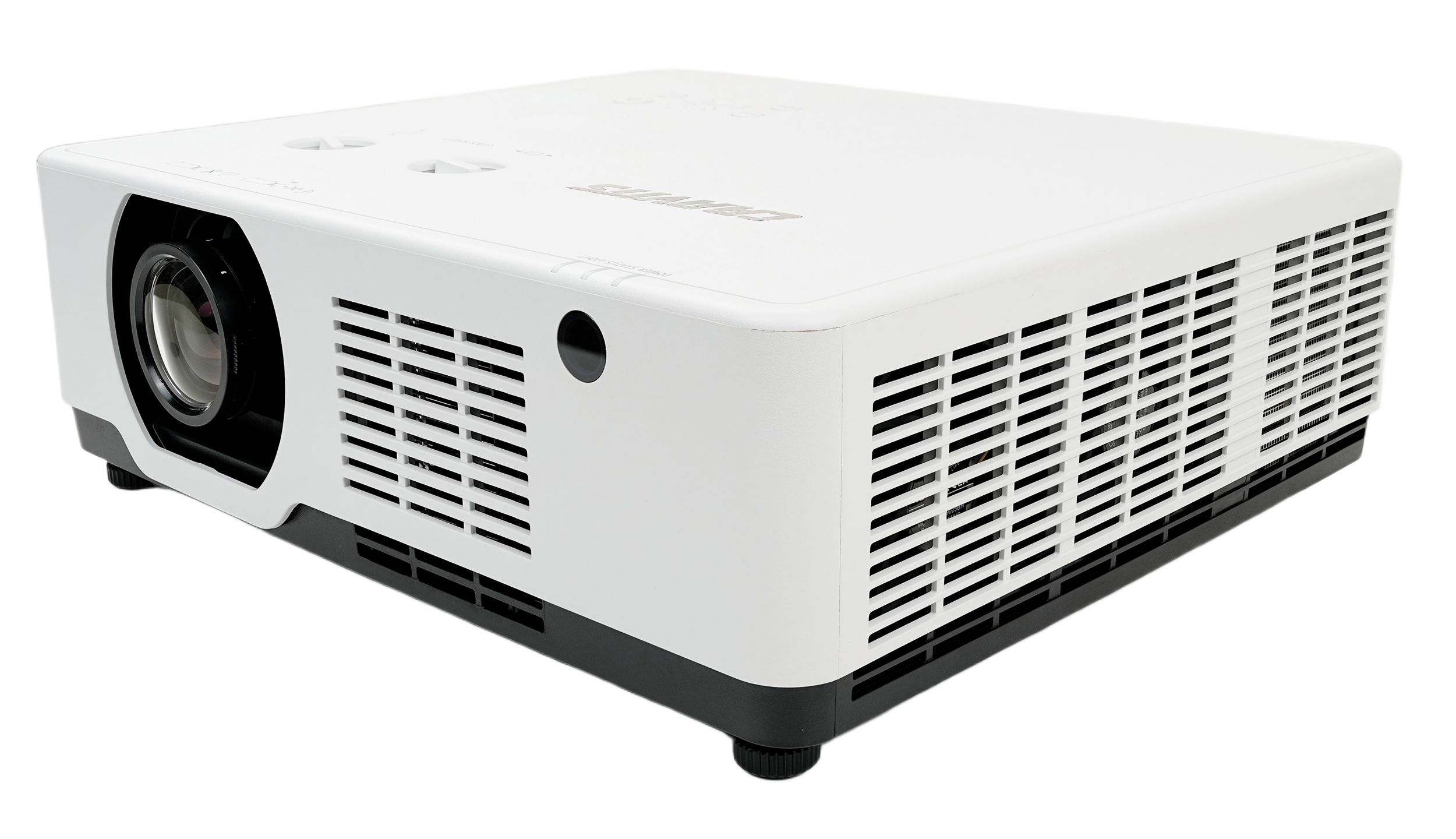

The CA-M600X is a 6000-lumen standard-throw laser projector from CAAVITS MEGA series. It features 3×0.63" MLA micro-lens array 3LCD display technology and laser light source, paired with a Fujifilm standard zoom lens. With a 1.3~2.2:1 throw ratio, 1.66x optical zoom and lens shift, it can flexibly project large images ranging from 30" to 300". As the high-brightness entry-level workhorse of the MEGA series for standard XGA (4:3) projection at regular distances, it balances high brightness and installation flexibility.
-
Brightness: 6000 Lumens
- Resolution: XGA (1024 × 768)
- Throw Ratio: 1.3~2.2:1 Standard Throw
- Net Weight: 7.7 kg
| Brightness (Lumens) | 6000 lm |
|---|---|

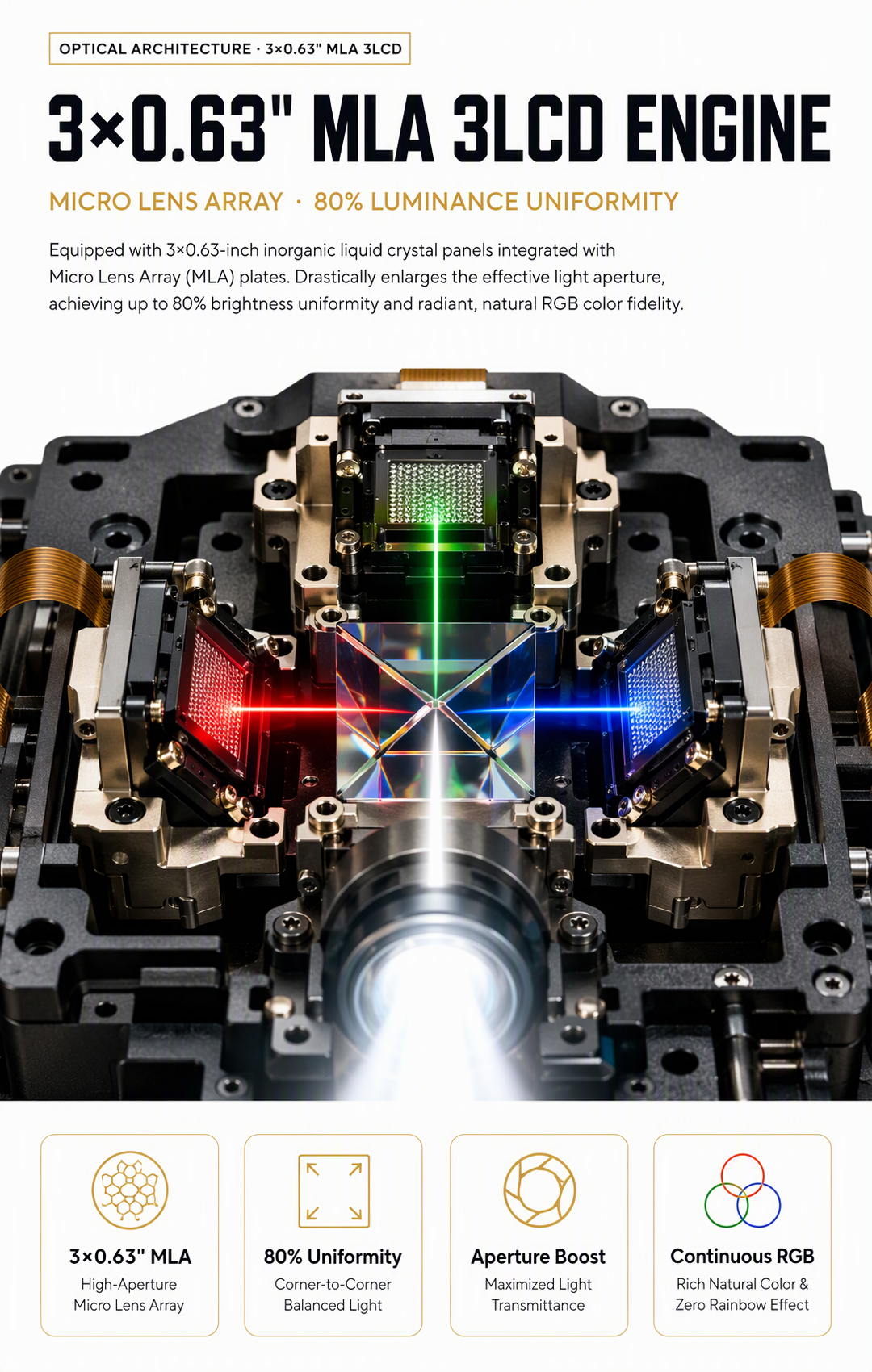

| Display Technology | 3x0.63” with MLA, 3LCD |
| Display Resolution | XGA (1024×768) |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H ECO 30,000 H |
| Zoom/Focus | Manual |

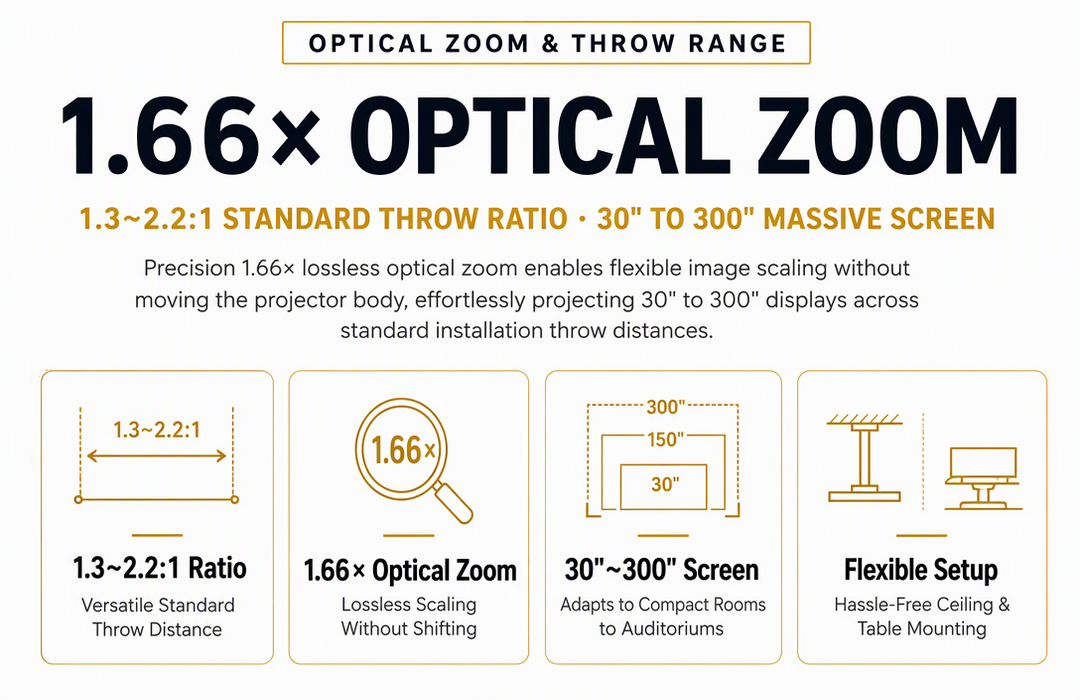

| Zoom Ratio | 1.66x |
| Throw Ratio | 1.3-2.2 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000:1 |
| Keystone Correction | V: ±30° H：±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |

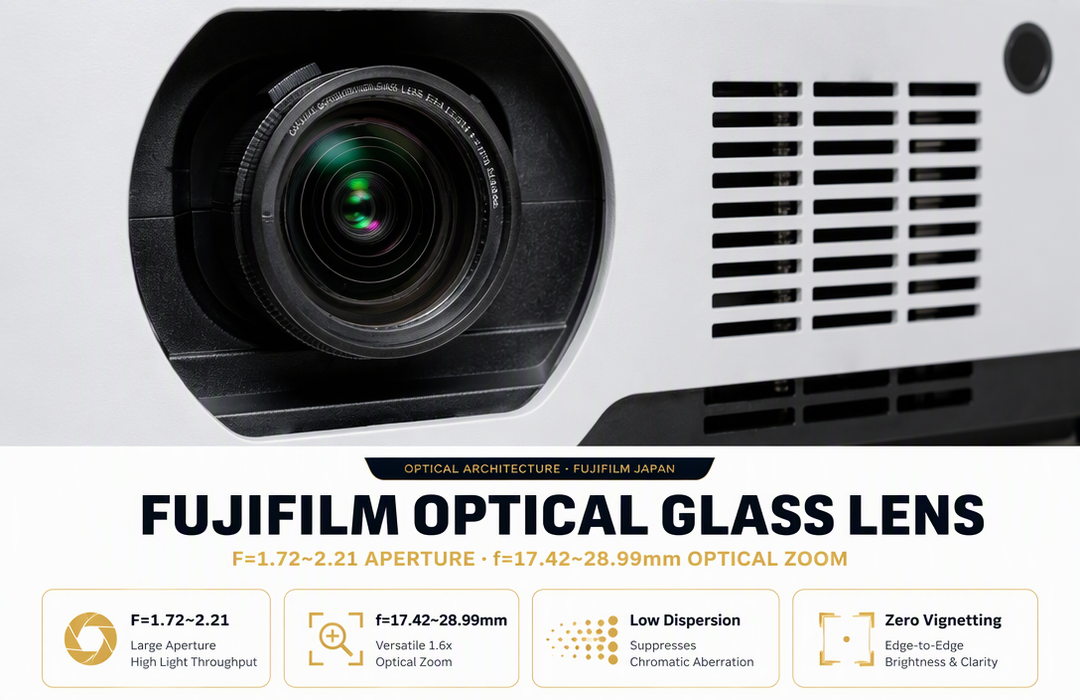

| F | F=1.7~2.21 |
| f | f=17.42~28.99mm |

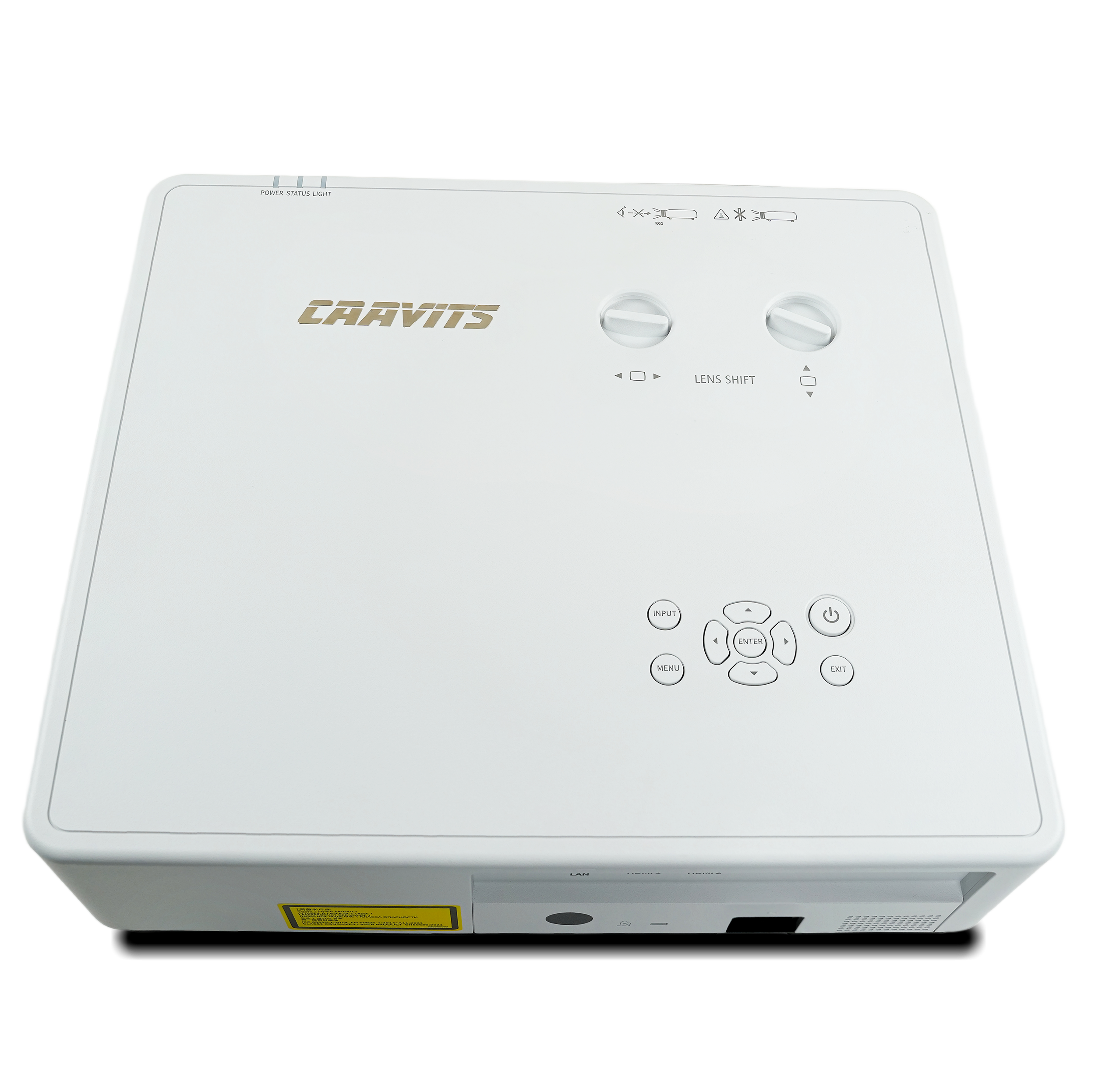

| Lens Shift | V:＋50%～0% H:±28% |
| Screen Size (inch) | 30"-300" |
| Speaker | 16W×1 |
| Noise (dB) | 37dB (Normal) 29dB (ECO1)27dB (ECO2) |
| Aspect Ratio | Native:4:3 Compatible: 16:9 |
| Physical (W×D×H mm) | 405×358×137 mm |
| Net (kg) | 7.7 kgs |
