CA-M600UT
CA-M600UT Brightness: 6000 Lumens Resolution: WUXGA (1920 × 1200) Throw Ratio: 0.44:1 Ultra Short Throw Net Weight: 8.1 kg Ideal for medium-to-large meeting rooms and corporate training rooms.

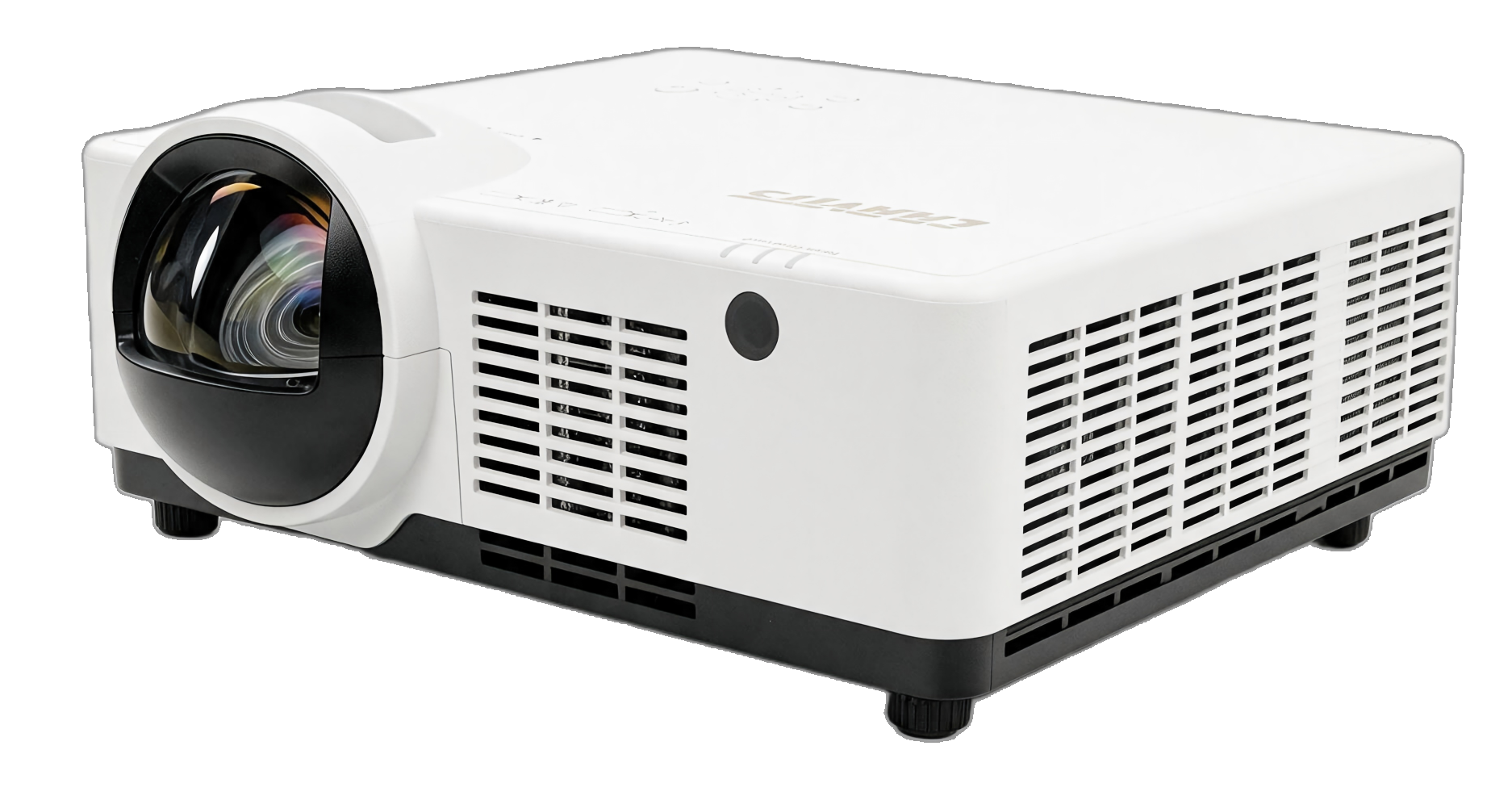

The CA-M600UT is a 6000-lumen ultra-short-throw laser projector from CAAVITS MEGA ST series. It adopts 3×0.64" MLA micro-lens array 3LCD display technology paired with NICHIA laser light source and RICOH ultra-short-throw lens. With a 0.44:1 throw ratio, it can project a large 55"~130" image from an extremely short distance. Compared with its sibling model CA-M600WT (WXGA), this upgraded flagship variant features WUXGA (1920×1200) full HD resolution for finer details. It is tailored for premium education and business scenarios requiring sharp reproduction of engineering drawings, data charts and high-definition video.
-
Brightness: 6000 Lumens
- Resolution: WUXGA (1920 × 1200)
- Throw Ratio: 0.44:1 Ultra Short Throw
- Net Weight: 8.1 kg
| Brightness (Lumens) | 6000 lm |
|---|---|
| Display Technology | 3x0.64” with MLA, 3LCD |
| Display Resolution | WUXGA (1920×1200) |
| Light Source | NICHIA LASER |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |
| Zoom/Focus | Manual |
| Throw Ratio | 0.44:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

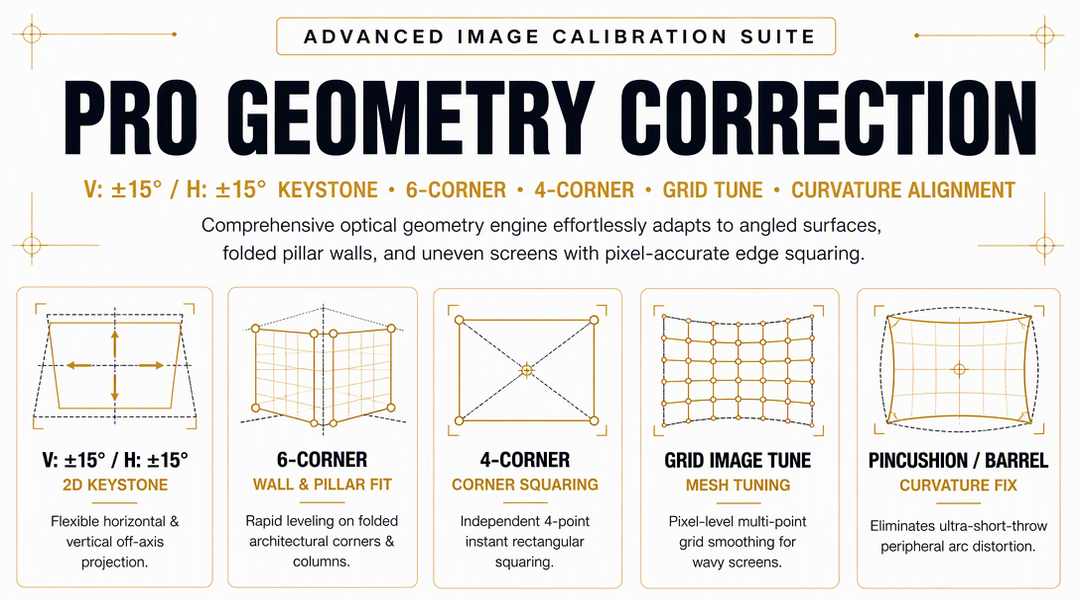

| Keystone Correction | V: ±15° H: ±15° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |

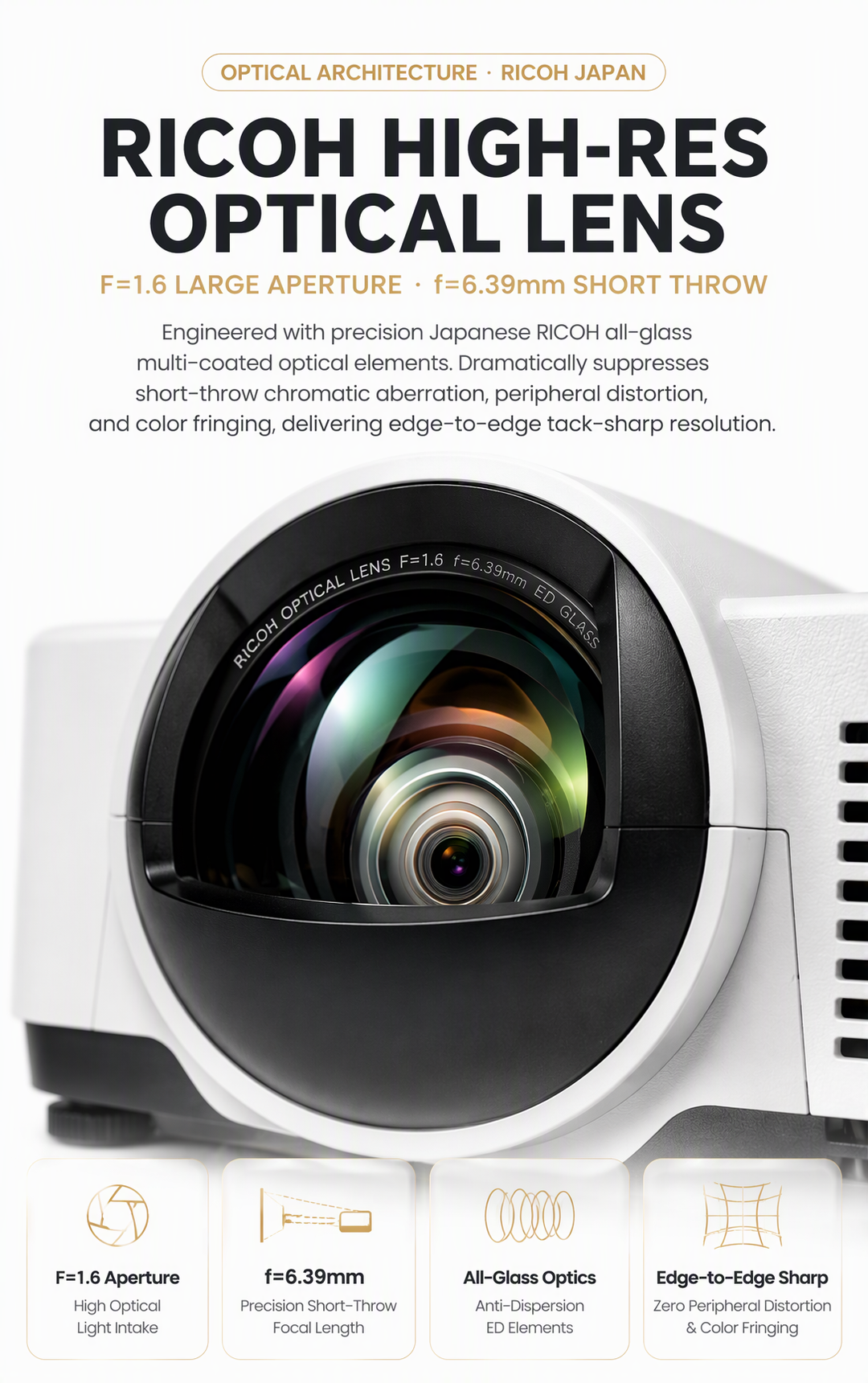

| F | F=1.6 |
| f | f=6.39mm |
| Screen Size | 55-130 inch |
| Speaker | 16W×1 |
| Noise (dB) | 37dB (Normal), 27dB (ECO） |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3 16:9 |
| Physical (W×D×H mm) | 405×404×164 mm |
| Net (kg) | 8.1 kg |
