CA-L525UT
CA-L525UT Brightness: 5250 Lumens Resolution: WUXGA (1920 × 1200) Throw Ratio: 0.235:1 Ultra Short Throw Net Weight: 11 kg Ideal for high-end meeting rooms and medium-to-large tiered classrooms.

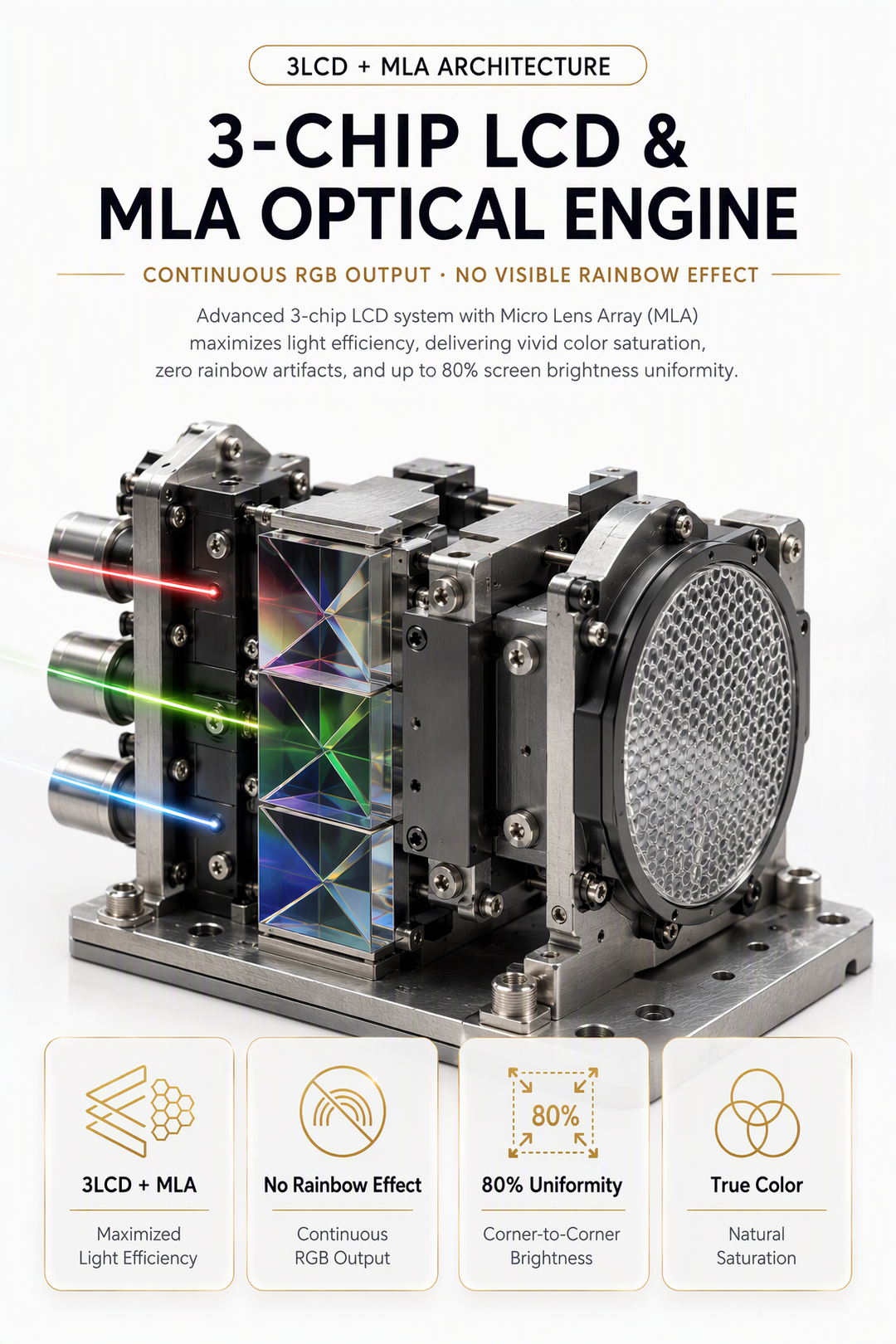

The CA-L525UT is a flagship WUXGA high-brightness laser ultra-short-throw projector developed by CAAVITS for high-end meeting spaces and medium-to-large bright environments. Integrating 5250 lumens high brightness, an extreme ultra-short throw ratio of 0.235:1, 1920×1200 full HD resolution and 3×0.64" MLA micro-lens 3LCD chips, it serves as the top-spec model of the LIMIT series. It combines three core strengths: ultra-short-throw convenience, high brightness for anti-ambient-light performance and ultra-high-definition image quality.
-

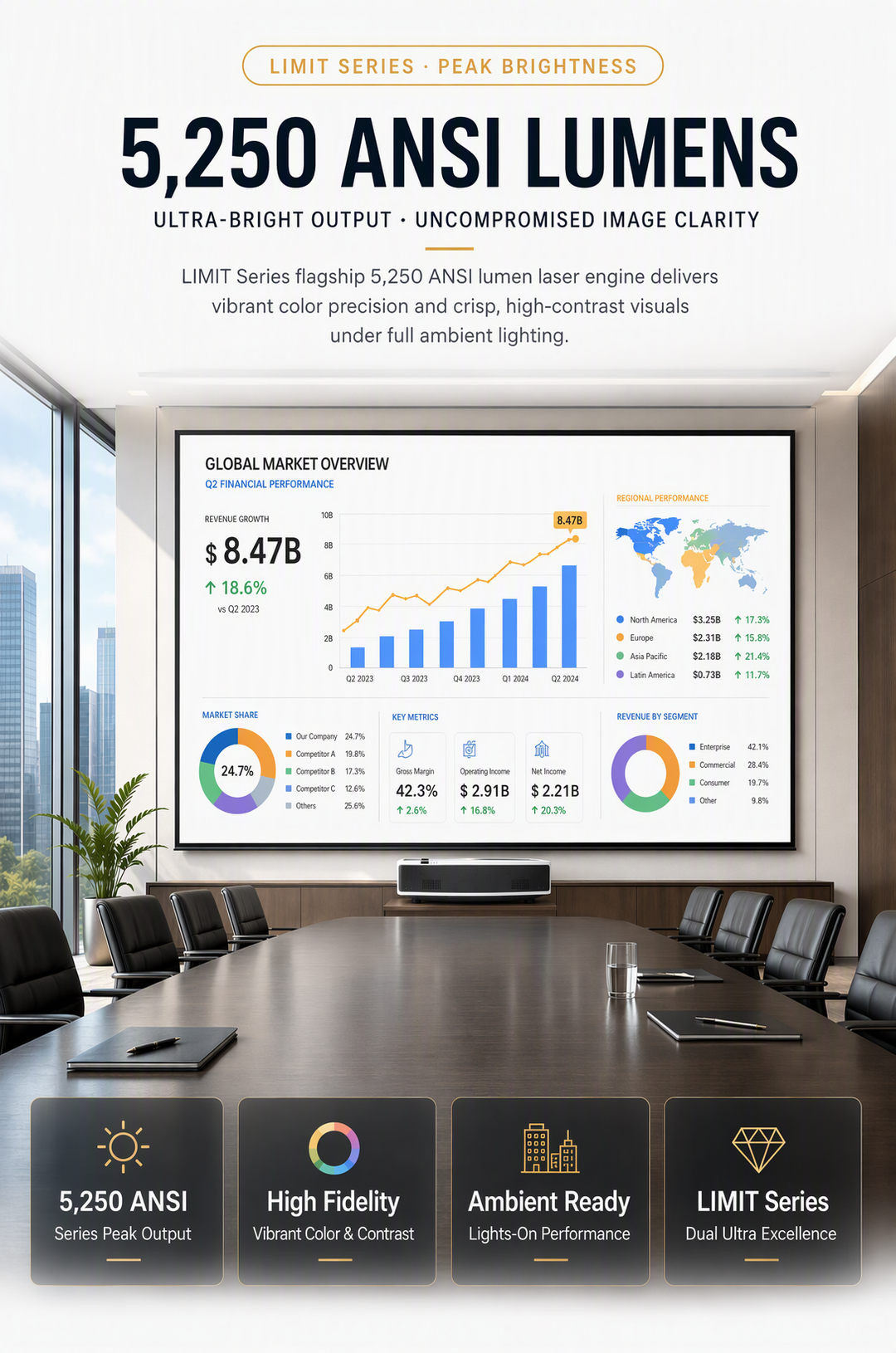

Brightness: 5250 Lumens
- Resolution: WUXGA (1920 × 1200)
- Throw Ratio: 0.235:1 Ultra Short Throw
- Net Weight: 11 kg
| Brightness (Lumens) | 5250 lm |
|---|---|
| Display Technology | 3x0.64" with MLA, 3LCD |
| Display Resolution | WUXGA 1920×1200 |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |

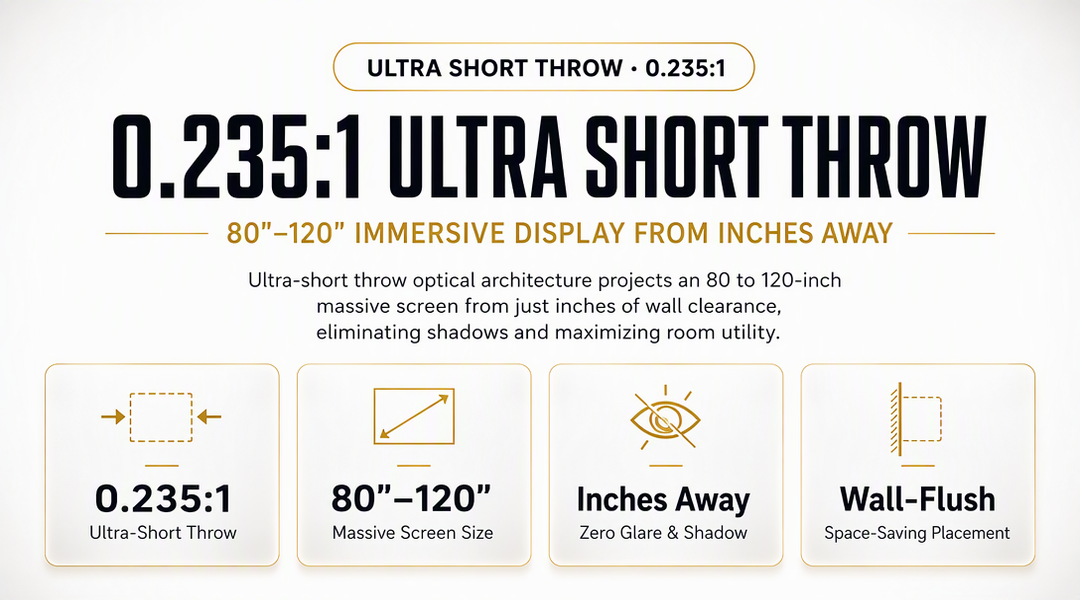

| Throw Ratio | 0.235:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

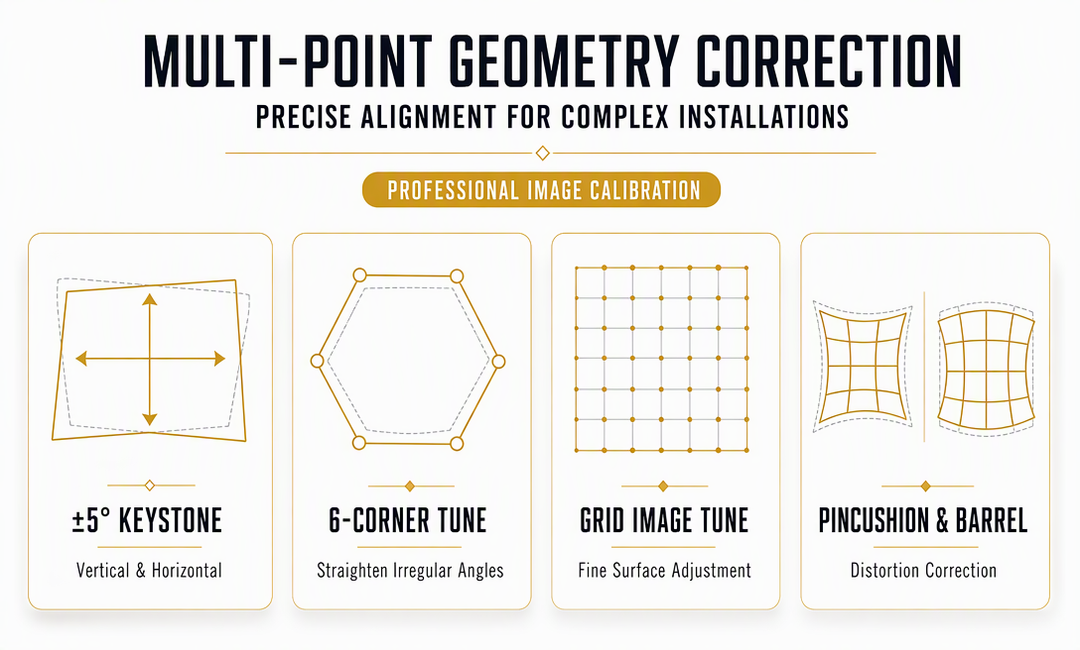

| Keystone Correction （Lens@center) | V: ±5° H：±5 ° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |

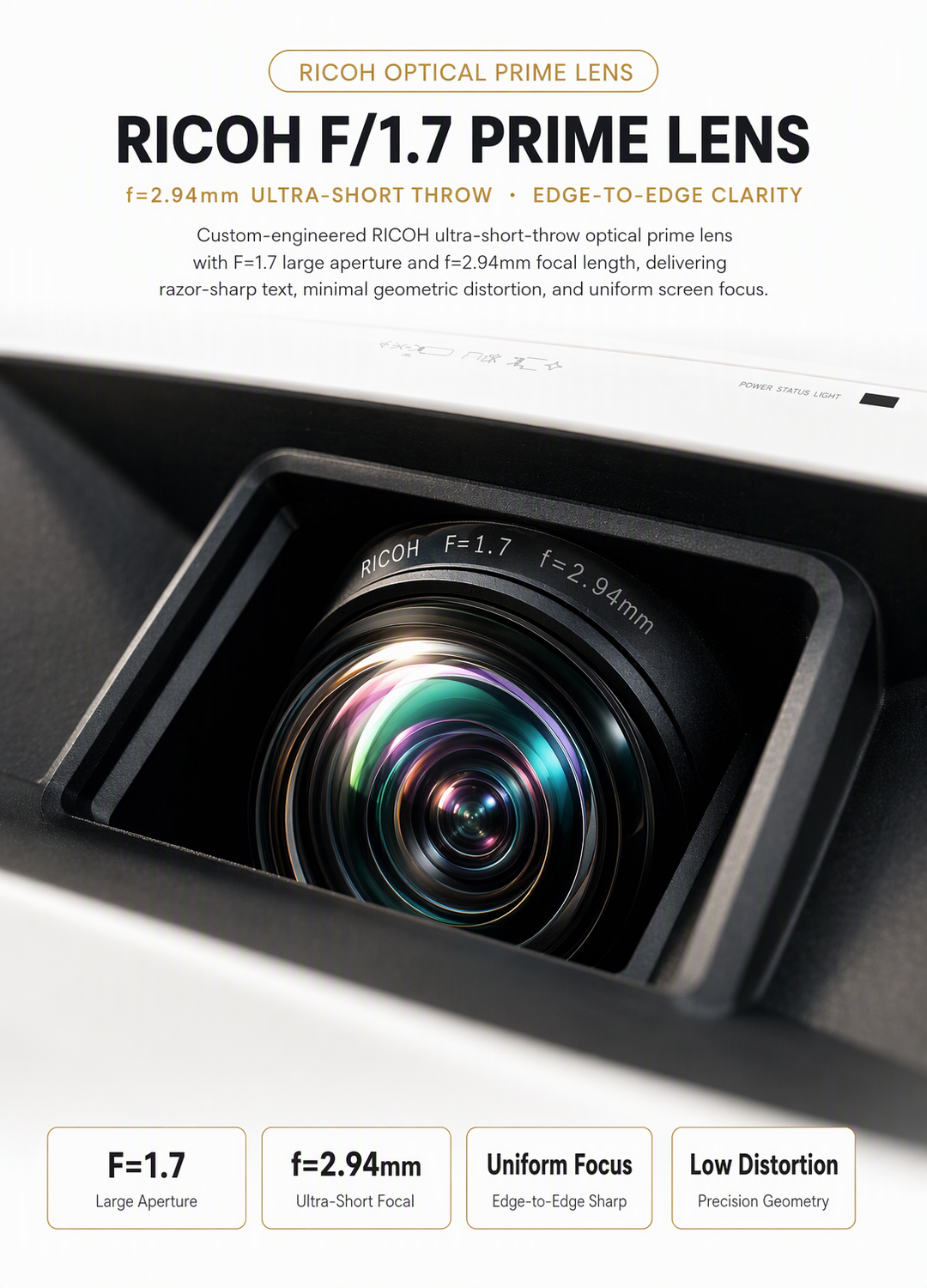

| F | F=1.7 |
| f | f=2.94mm |
| Screen Size | 80-120" |
| Speaker | 16W×1 |
| Noise (dB) | 37dB (Normal), 30dB (ECO1), 27dB (ECO2) |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3, 16:9 |
| Voltage | 100~240V@ 50/60Hz |
| Computer Signal Input | VGA, SVGA, XGA,SXGA,WXGA,UXGA, WUXGA, 4K@30Hz |
| Physical (W×D×H mm) | 520 x 435 x 168 mm |
| N.W. (kg) | 11 kg |
