CA-L525WT
CA-L525WT Brightness: 5250 lumens Resolution: WXGA (1280×800) Throw ratio: 0.235:1 ultra-short throw Net weight: 11 kgSuitable for medium and large classrooms and enterprise training rooms.
The CA-L525WT is a WXGA high-brightness laser ultra-short throw projector developed by CAAVITS for medium and large-scale teaching and business presentation scenarios. Boasting core advantages of 5250 lumens high brightness, an extreme ultra-short throw ratio of 0.235:1 and 3×0.64-inch MLA microlens 3LCD chips, it features "large-screen projection close to the wall, high brightness for anti-light performance and wide-screen display". As the high-brightness upgraded model of the LIMIT series, it delivers nearly 10% brightness improvement compared with the CA-L480WT, making it more adaptable to bright large-scale environments.
-
Brightness: 5250 lumens
- Resolution: WXGA (1280×800)
- Throw ratio: 0.235:1 ultra-short throw
- Net weight: 11 kg
| Brightness (Lumens) | 5250 lm |
|---|---|
| Display Technology | 3x0.64" with MLA, 3LCD |
| Display Resolution | WXGA (1280×800) |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |
| Throw Ratio | 0.235:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

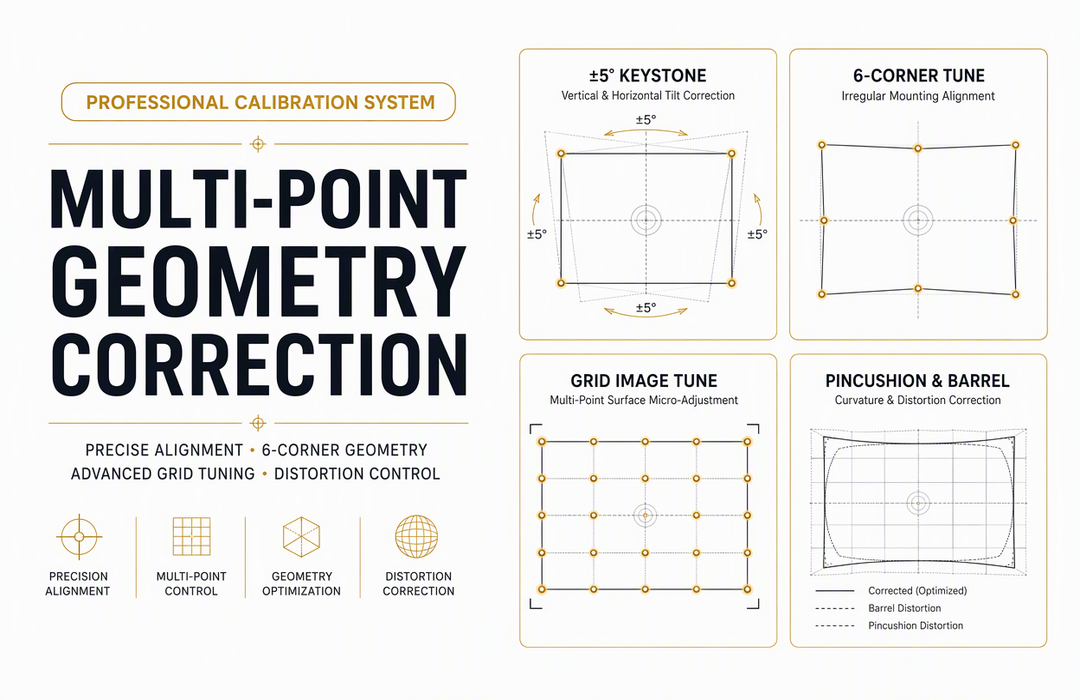

| Keystone Correction（Lens@center) | V: ±5° H：±5 ° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| F | F=1.7 |
| f | f=2.94mm |
| Screen Size | 80-120" |
| Speaker | 16W×1 |
| Noise (dB) | 37dB (Normal), 30dB (ECO1), 27dB (ECO2) |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3, 16:9 |
| Physical (W×D×H mm) | 520 x 435 x 168 mm |
| N.W. (kg) | 11 kgs |
