CA-L480UT
CA-L480UT Brightness: 4800 lumens Throw ratio: 0.235:1 ultra-short throw Resolution: WUXGA (1920×1200) Net weight: 11 kg Ideal for high-end meeting rooms and enterprise lecture halls.
The CA-L480UT is a WUXGA ultra HD laser ultra-short throw projector developed by CAAVITS for high-end meetings and fine presentation scenarios. Featuring an extreme ultra-short throw ratio of 0.235:1, high brightness of 4800 lumens, and 3×0.64-inch MLA microlens 3LCD chips as its core strengths, it is built for "large-screen projection close to the wall, 1920×1200 ultra HD resolution and high brightness for anti-light performance". As the top-spec model of the LIMIT series, it balances the convenience of ultra-short throw projection and ultra-high-definition image quality.
-
Brightness: 4800 lumens
- Throw ratio: 0.235:1 ultra-short throw
- Resolution: WUXGA (1920×1200)
- Net weight: 11 kg

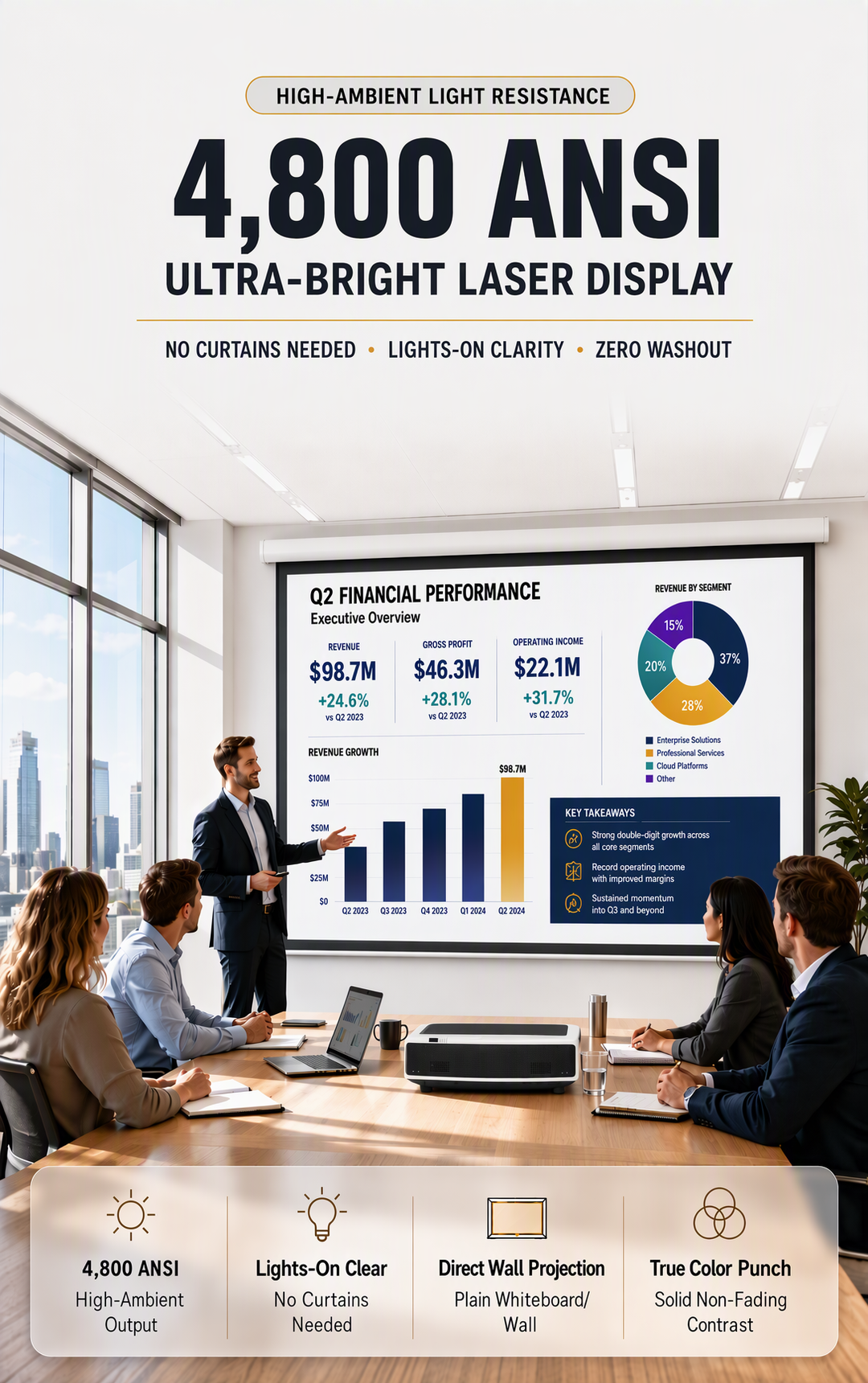

| Brightness (Lumens) | 4800 lm |
|---|---|

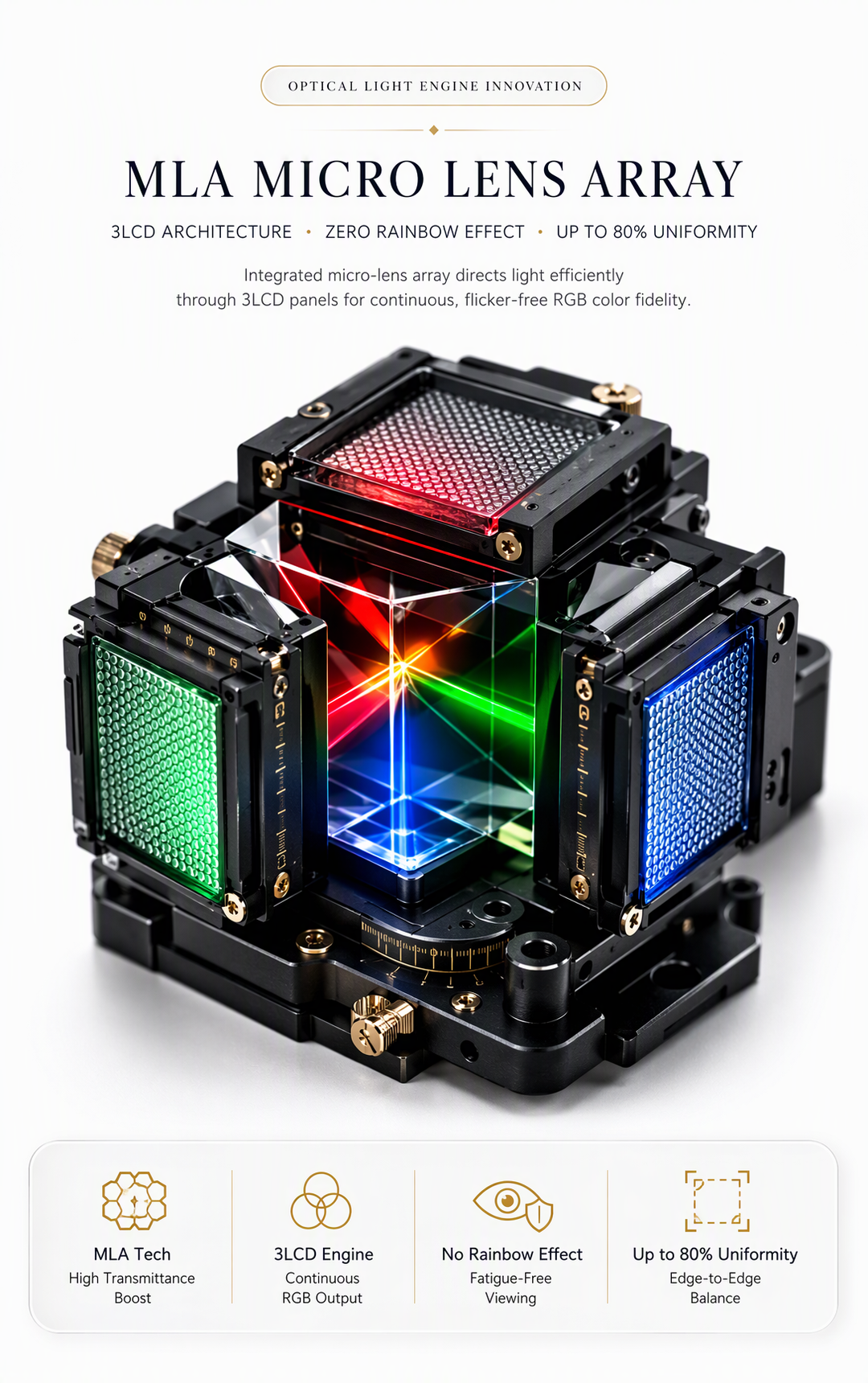

| Display Technology | 3x0.64" with MLA, 3LCD |

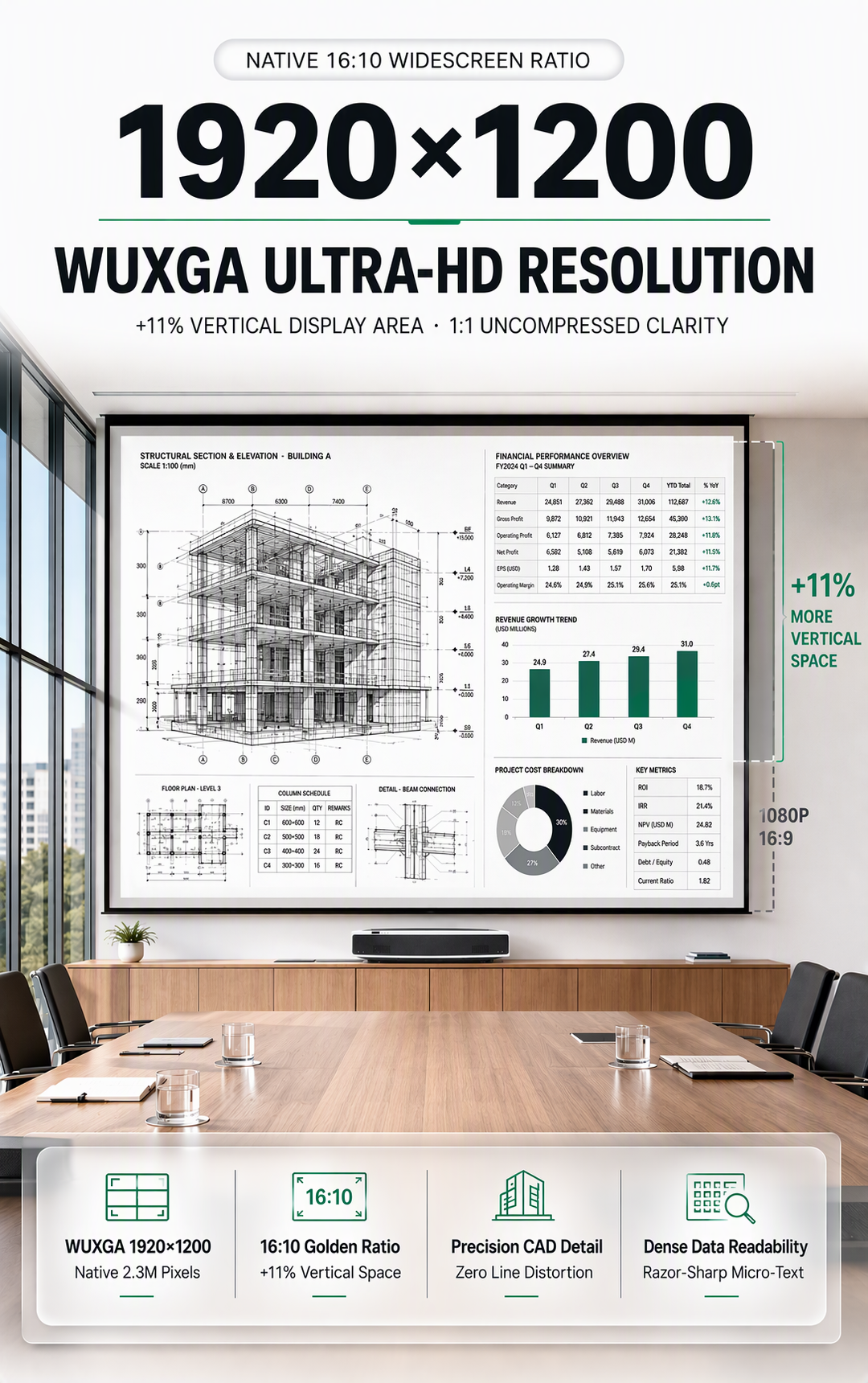

| Display Resolution | WUXGA (1920×1200) |

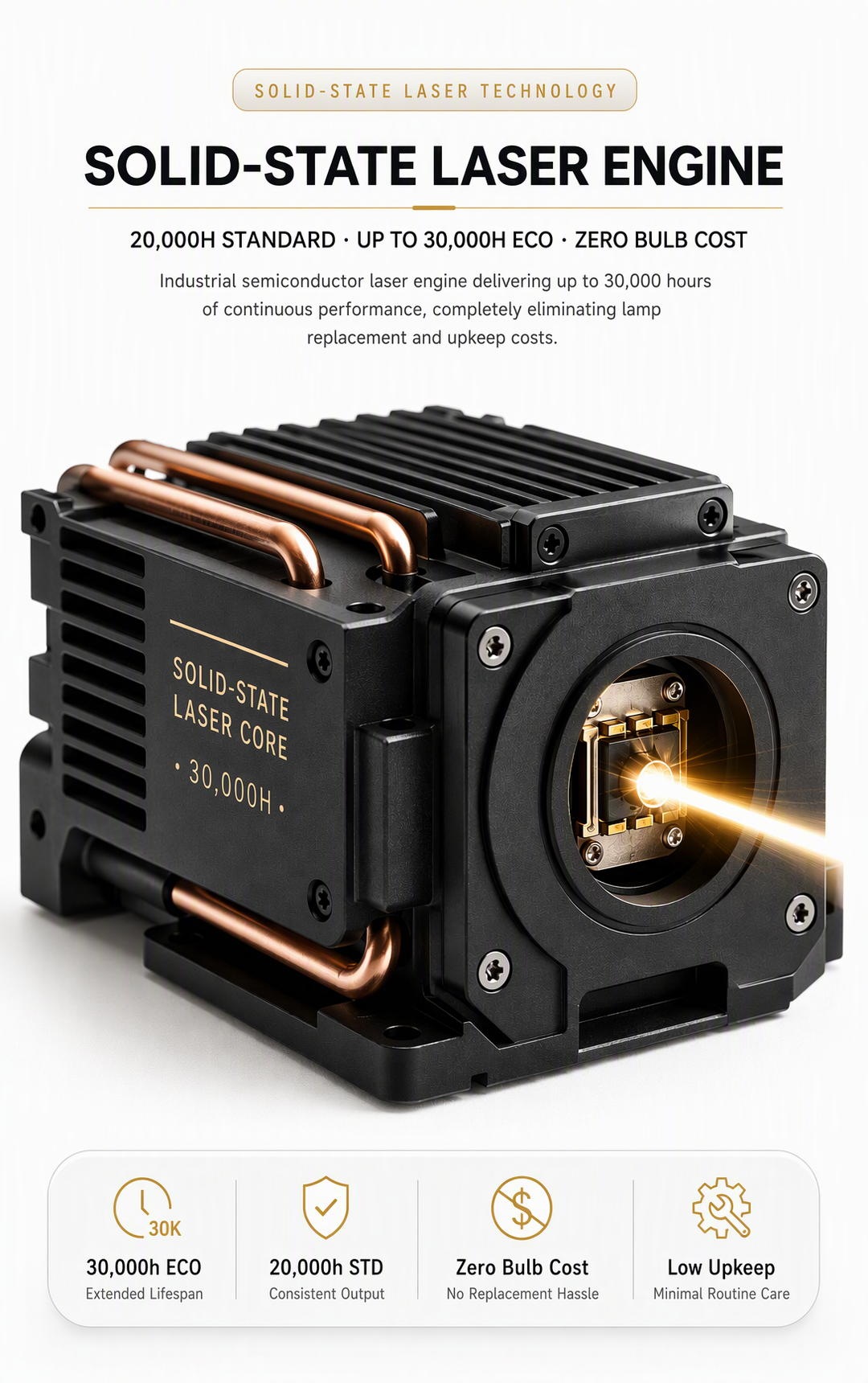

| Light Source | Laser |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |
| Throw Ratio | 0.235:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

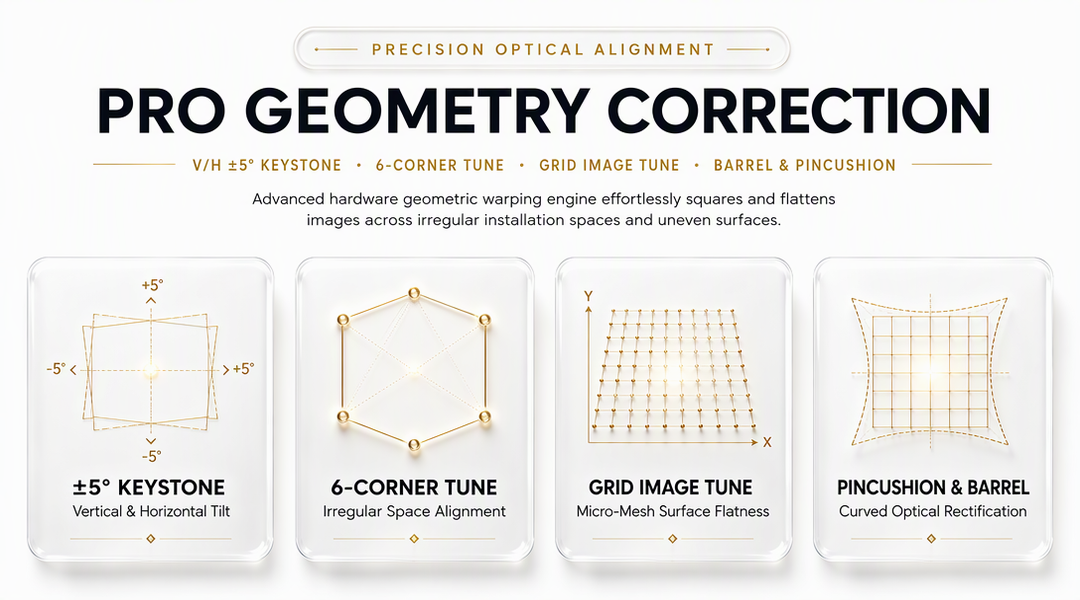

| Keystone Correction（Lens@center) | V: ±5° H：±5 ° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |

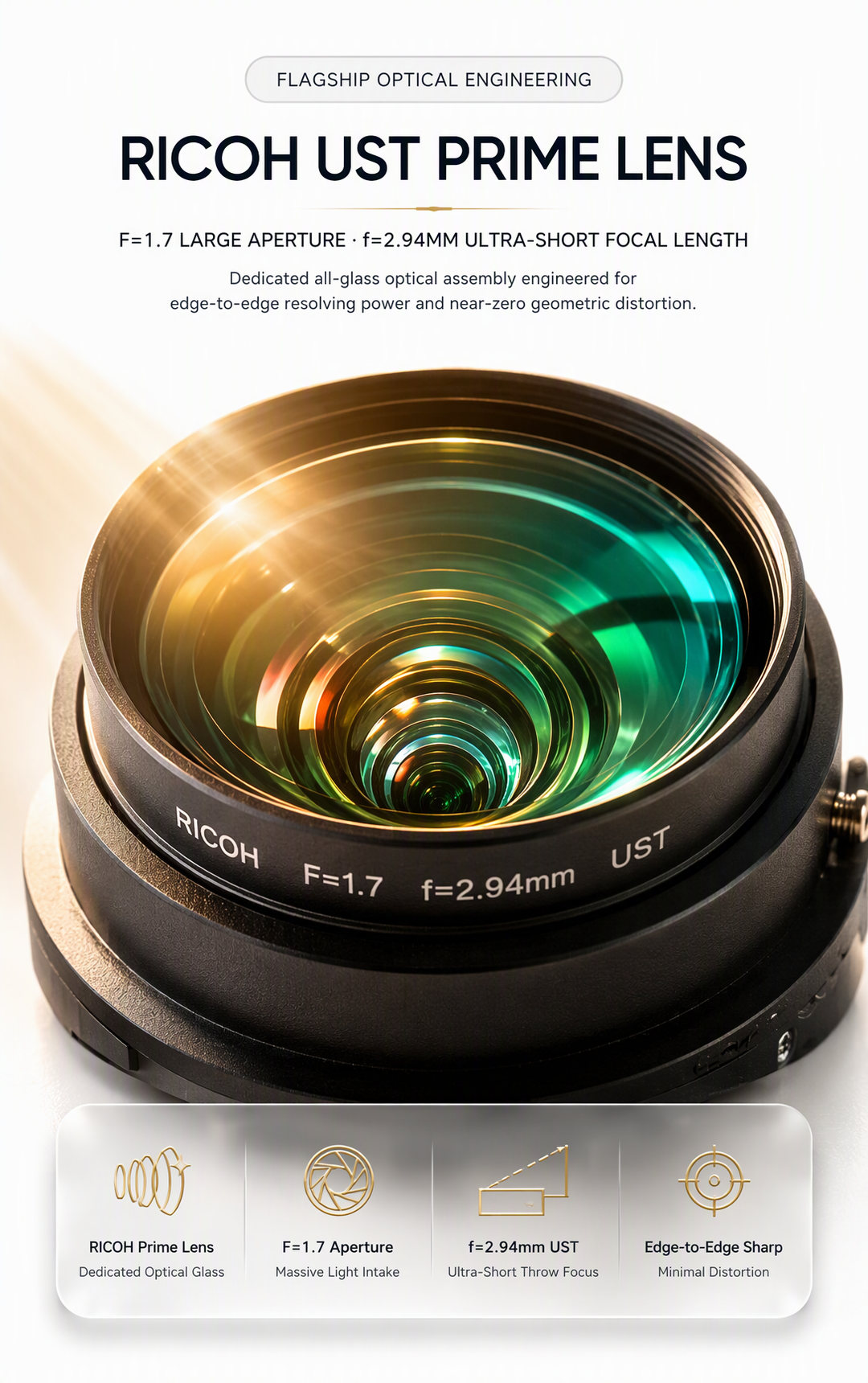

| F | F=1.7 |
| f | f=2.94mm |
| Screen Size | 80-120" |
| Speaker | 16W×1 |
| Aspect Ratio | Native: 16:10, Compatible: 4:3, 16:9 |
| Uniformity | 80% |
| Noise (dB) | 37dB (Normal), 30dB (ECO1), 27dB (ECO2) |
| Oparating Humidity | 20-80% |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p,1080i and 1080p |
| Physical (W×D×H mm) | 520 x 435 x 168 mm |
| N.W. (kg) | 11 kgs |
