CA-L480WT
CA-L480WT | 4800 Lumens, WXGA (1280×800), 0.235:1 Ultra Short Throw, Net Weight 11kg. Suitable for small & medium meeting rooms, exhibition windows and classrooms.
The CA-L480WT is a WXGA widescreen laser ultra-short-throw projector developed by CAAVITS for smart education and interactive display scenarios. Featuring core strengths including an extreme ultra-short throw ratio of 0.235:1, 4800 lumens high brightness, and 3×0.64" MLA micro-lens 3LCD chips, it highlights the advantages of "large-screen projection right against the wall, 16:10 widescreen, high brightness for anti-ambient-light performance". As the widescreen upgraded version of CA-L480XT, it is better suited for displaying modern widescreen courseware and conference content
-
Brightness: 4800 Lumens
- Resolution: WXGA (1280 × 800)
- Throw Ratio: 0.235:1 Ultra Short Throw
- Net Weight: 11 kg
| Brightness (Lumens) | 4800 lm |
|---|---|
| Display Technology | 3x0.64" with MLA, 3LCD |
| Display Resolution | WXGA (1280 x 800) |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |
| Throw Ratio | 0.235:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

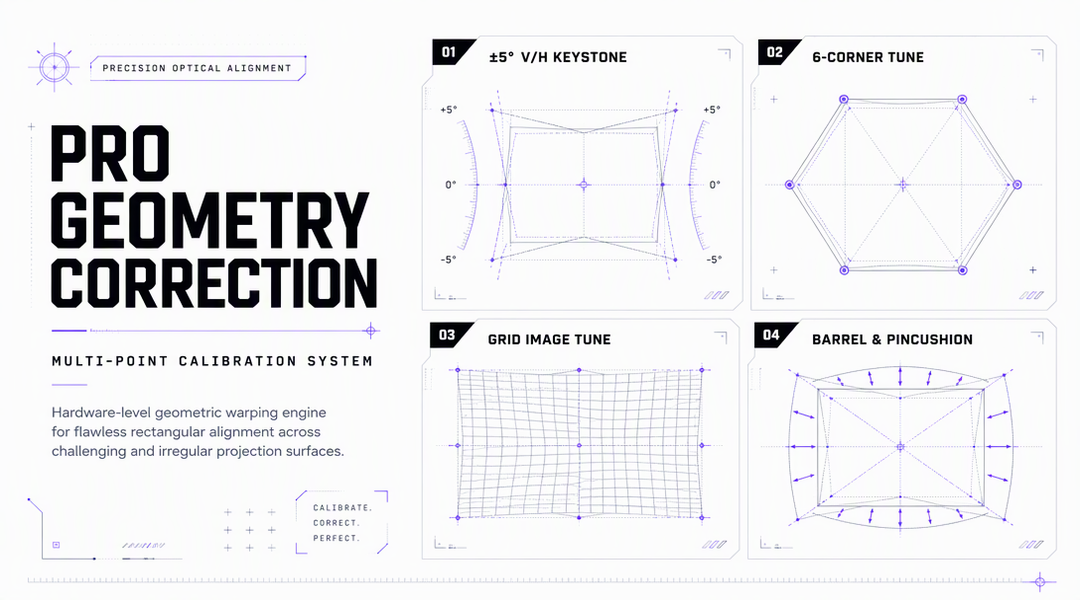

| Keystone Correction（Lens@center) | V: ±5° H：±5 ° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |

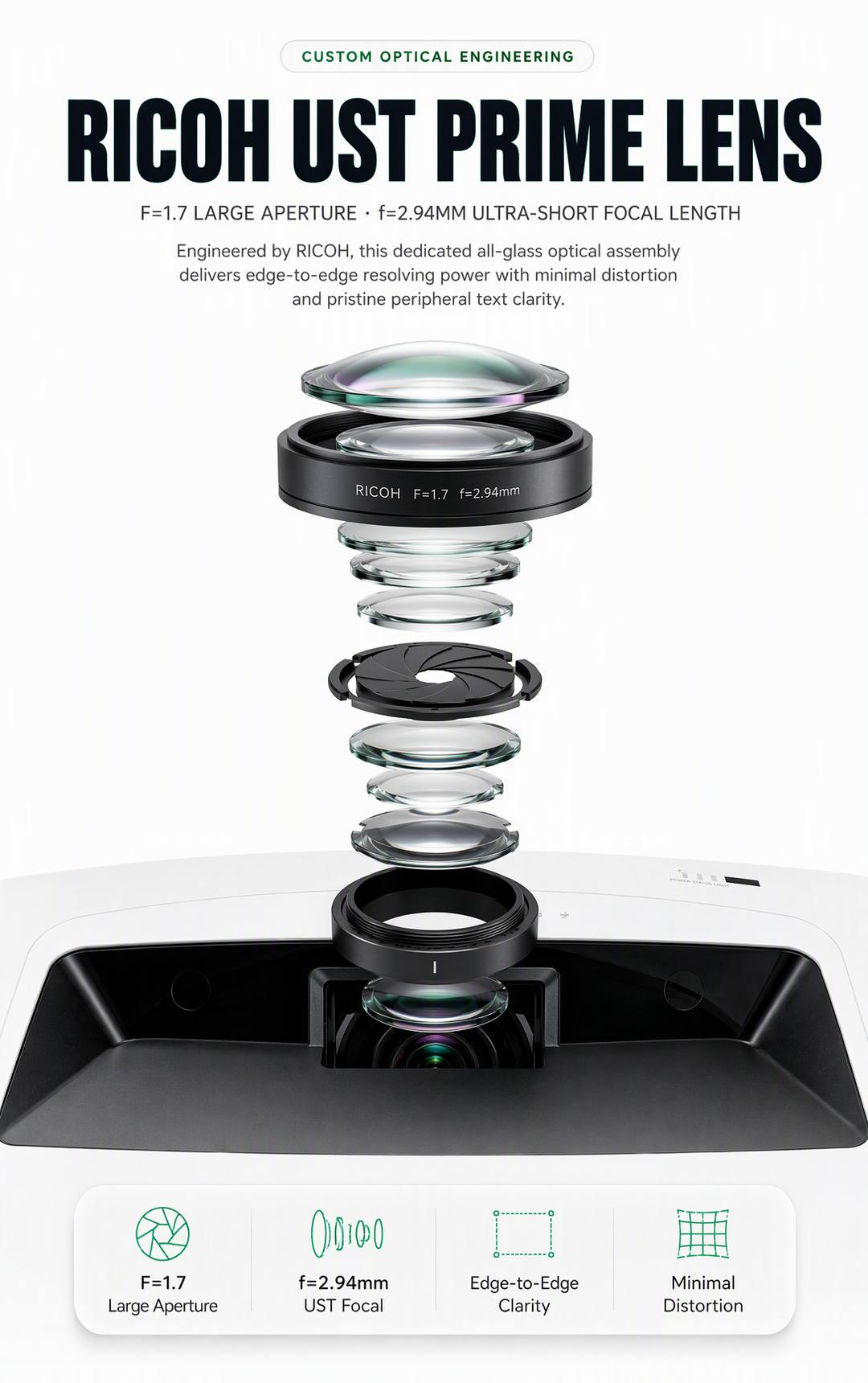

| F | F=1.7 |
| f | f=2.94mm |
| Screen Size | 80-120" |
| Speaker | 16Wx1 |
| Noise (dB) | 37dB (Normal), 30dB (ECO1), 27dB (ECO2) |
| Uniformity | 80% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3, 16:9 |
| Oparating Humidity | 20-80% |
| Physical (W×D×H mm) | 520 x 435 x 168 mm |
| N.W. (kg) | 11 kgs |
