CA-L480XT
CA-L480XT | 4800 Lumens, XGA (1024×768), 0.254:1 Ultra Short Throw, Net Weight 11kg. Suitable for small & medium meeting rooms and smart classrooms.
The CA-L480XT is an XGA laser ultra-short-throw projector developed by CAAVITS for smart education and interactive display scenarios. Boasting core strengths including a 0.254:1 ultra-short throw ratio, 4800 lumens high brightness, and 3×0.63" MLA micro-lens 3LCD chips, it highlights the advantages of "large-screen projection right against the wall, nearly maintenance-free laser light source, high brightness for anti-ambient-light performance". It is an ideal choice for interactive whiteboards and close-range large-screen teaching.
-
Brightness: 4800 Lumens
- Resolution: XGA (1024 × 768)
- Throw Ratio: 0.254:1 Ultra Short Throw
- Net Weight: 11 kg
| Brightness (Lumens) | 4800 lm |
|---|---|
| Display Technology | 3x0.63” with MLA, 3LCD |
| Display Resolution | XGA (1024×768) |
| Light Source | Laser |
| Light Source Life | Normal 20,000 H, ECO 30,000 H |
| Throw Ratio | 0.254:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000 : 1 |

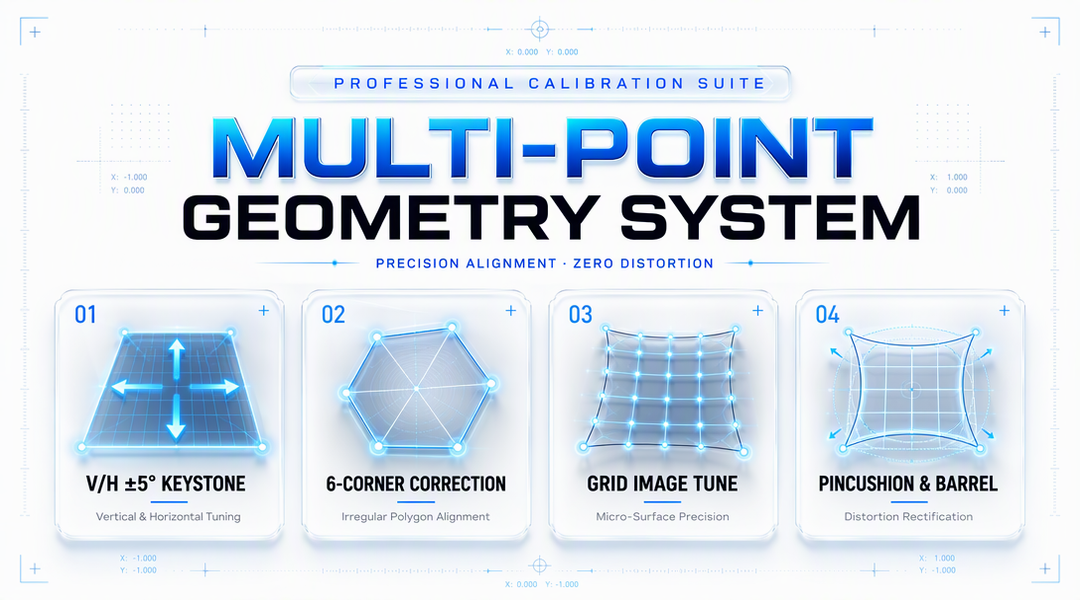

| Keystone Correction （Lens@center) | V: ±5°,H: ±5°, Pincushion/Barrel Correction,6 Corner Geometry correction, Grid image tune, |

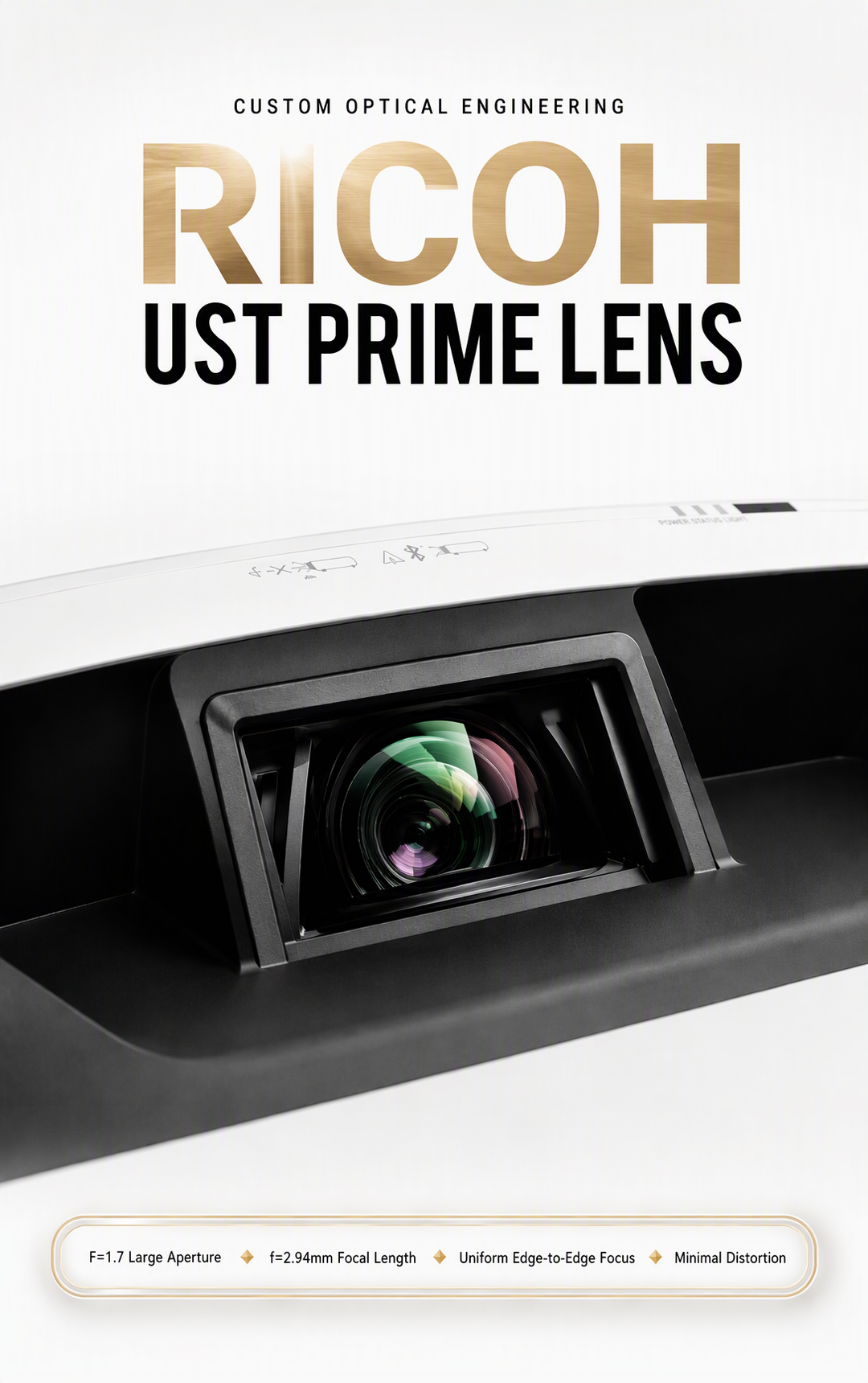

| F | F=1.7 |
| f | f=2.94mm |
| Screen Size | 80-120" |
| Speaker | 16W×1 |
| Noise (dB) | 37dB (Normal), 30dB (ECO1), 27dB (ECO2) |
| Aspect Ratio | Native: 4:3, Compatible: 16:9 |
| Uniformity | 80% |
| Oparating Humidity | 20-80% |
| Physical (W×D×H mm) | 520 x 435 x 168 mm |
| N.W. (kg) | 11 kgs |
