CA-C500U
CA-C500U features 5,000 lumens, 1.08~1.76:1 throw ratio, WUXGA (1920×1200) resolution and 5 kg net weight, ideal for medium-to-large classrooms and meeting rooms.
The CA-C500U is a WUXGA (1920×1200) 3LCD laser commercial projector. It features 5,000 lumens brightness, a throw ratio of 1.08~1.76:1 and 1.6x zoom. Adopting a NICHIA laser light source with a lifespan of 20,000/30,000 hours, it delivers a 5,000,000:1 dynamic contrast ratio. It supports vertical lens shift (0%~+45%) and has a net weight of 5 kg, suitable for presentations in medium-to-large classrooms and meeting rooms.
-
Brightness: 5,000 lumens
- Throw Ratio: 1.08~1.76:1
- Resolution: WUXGA (1920 × 1200)
- Net Weight: 5 kg
| Brightness (Lumens) | 5000 lm |
|---|---|
| Display Technology | SONY 0.64" 3LCD |
| Display Resolution | WUXGA 1920×1200 |
| Light Source | NICHIA LASER |
| Light Source Life | Normal 20000H, ECO 30000H |
| Zoom Ratio | 1.6x optics |

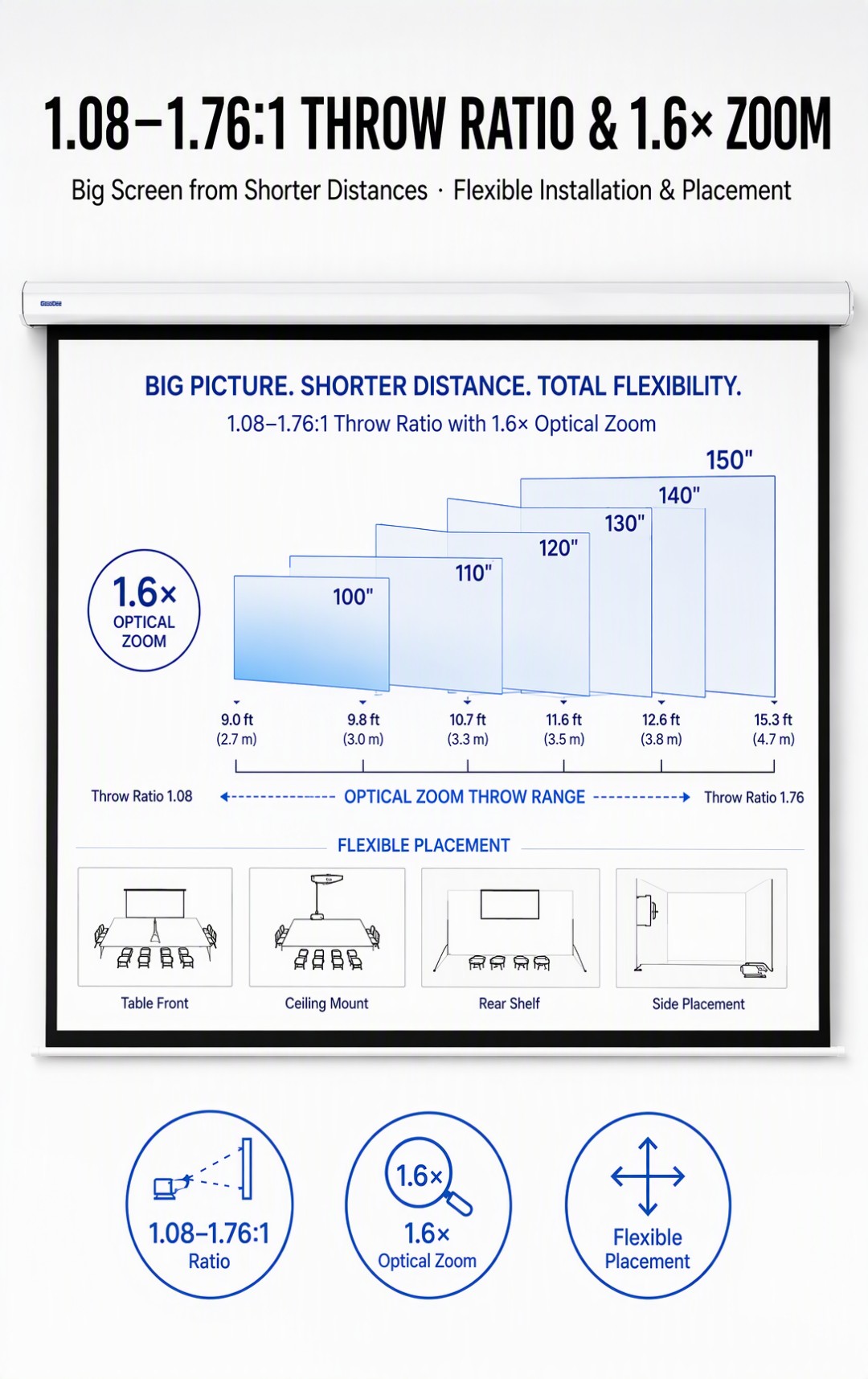

| Throw Ratio | 1.08-1.76:1 |
| Dynamic Contrast Ratio (FOFO) | 5,000,000:1 |
| Native Contrast Ratio (FOFO) | 350:1 (Min) |
| Keystone Correction | V: ±30°, H：±30°, Pincushion/Barrel Correction, 4 corner 6 Corner Geometry correction, Grid image tune, |
| F | F=1.58-2.02:1 |
| f | f=15.3-24.6mm |
| Zoom/Focus | Manual |
| Lens Shift | V: 0%~+45% |
| Screen Size (inch) | 30"-300" |
| Speaker | 16W×1 |
| Noise (dB) | 37dB(Normal), 30dB(ECO1), 28dB(ECO2) |

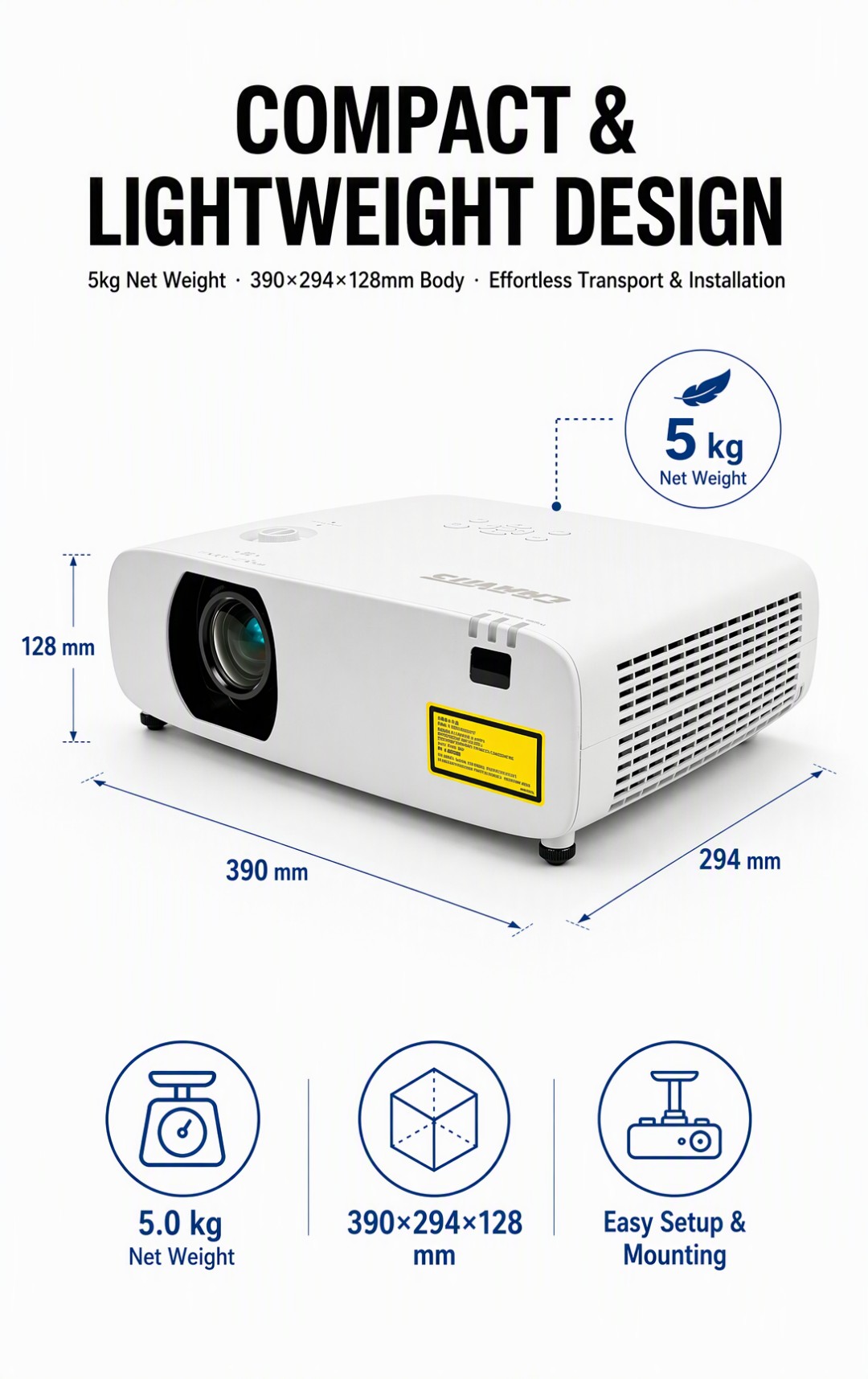

| Physical (W×D×H mm) | 390×294×128 mm |
| N.W. (kg) | 5 kg |
